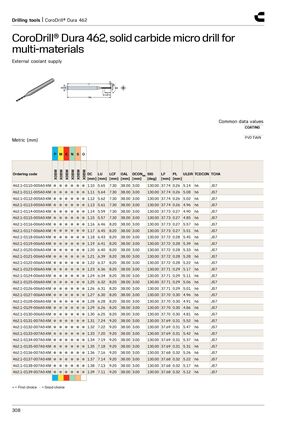

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials External coolant supply Common data values COATING PVD TiAlN Metric (mm) P M K N S O X0BM X0BM X0BM X0BM X0BM X0BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0110-005A0-XM ● ● ● ● ● ● 1.10 5.65 7.30 38.00 3.00 130.00 37.74 0.26 5.14 h6 JS7 462.1-0111-005A0-XM ● ● ● ● ● ● 1.11 5.64 7.30 38.00 3.00 130.00 37.74 0.26 5.08 h6 JS7 462.1-0112-005A0-XM ● ● ● ● ● ● 1.12 5.62 7.30 38.00 3.00 130.00 37.74 0.26 5.02 h6 JS7 462.1-0113-005A0-XM ● ● ● ● ● ● 1.13 5.61 7.30 38.00 3.00 130.00 37.74 0.26 4.96 h6 JS7 462.1-0114-005A0-XM ● ● ● ● ● ● 1.14 5.59 7.30 38.00 3.00 130.00 37.73 0.27 4.90 h6 JS7 462.1-0115-005A0-XM ● ● ● ● ● ● 1.15 5.57 7.30 38.00 3.00 130.00 37.73 0.27 4.85 h6 JS7 462.1-0116-006A0-XM ● ● ● ● ● ● 1.16 6.46 8.20 38.00 3.00 130.00 37.73 0.27 5.57 h6 JS7 462.1-0117-006A0-XM ● ● ● ● ● ● 1.17 6.45 8.20 38.00 3.00 130.00 37.73 0.27 5.51 h6 JS7 462.1-0118-006A0-XM ● ● ● ● ● ● 1.18 6.43 8.20 38.00 3.00 130.00 37.72 0.28 5.45 h6 JS7 462.1-0119-006A0-XM ● ● ● ● ● ● 1.19 6.41 8.20 38.00 3.00 130.00 37.72 0.28 5.39 h6 JS7 462.1-0120-006A0-XM ● ● ● ● ● ● 1.20 6.40 8.20 38.00 3.00 130.00 37.72 0.28 5.33 h6 JS7 462.1-0121-006A0-XM ● ● ● ● ● ● 1.21 6.39 8.20 38.00 3.00 130.00 37.72 0.28 5.28 h6 JS7 462.1-0122-006A0-XM ● ● ● ● ● ● 1.22 6.37 8.20 38.00 3.00 130.00 37.72 0.28 5.22 h6 JS7 462.1-0123-006A0-XM ● ● ● ● ● ● 1.23 6.36 8.20 38.00 3.00 130.00 37.71 0.29 5.17 h6 JS7 462.1-0124-006A0-XM ● ● ● ● ● ● 1.24 6.34 8.20 38.00 3.00 130.00 37.71 0.29 5.11 h6 JS7 462.1-0125-006A0-XM ● ● ● ● ● ● 1.25 6.32 8.20 38.00 3.00 130.00 37.71 0.29 5.06 h6 JS7 462.1-0126-006A0-XM ● ● ● ● ● ● 1.26 6.31 8.20 38.00 3.00 130.00 37.71 0.29 5.01 h6 JS7 462.1-0127-006A0-XM ● ● ● ● ● ● 1.27 6.30 8.20 38.00 3.00 130.00 37.70 0.30 4.96 h6 JS7 462.1-0128-006A0-XM ● ● ● ● ● ● 1.28 6.28 8.20 38.00 3.00 130.00 37.70 0.30 4.91 h6 JS7 462.1-0129-006A0-XM ● ● ● ● ● ● 1.29 6.26 8.20 38.00 3.00 130.00 37.70 0.30 4.86 h6 JS7 462.1-0130-006A0-XM ● ● ● ● ● ● 1.30 6.25 8.20 38.00 3.00 130.00 37.70 0.30 4.81 h6 JS7 462.1-0131-007A0-XM ● ● ● ● ● ● 1.31 7.24 9.20 38.00 3.00 130.00 37.69 0.31 5.52 h6 JS7 462.1-0132-007A0-XM ● ● ● ● ● ● 1.32 7.22 9.20 38.00 3.00 130.00 37.69 0.31 5.47 h6 JS7 462.1-0133-007A0-XM ● ● ● ● ● ● 1.33 7.20 9.20 38.00 3.00 130.00 37.69 0.31 5.42 h6 JS7 462.1-0134-007A0-XM ● ● ● ● ● ● 1.34 7.19 9.20 38.00 3.00 130.00 37.69 0.31 5.37 h6 JS7 462.1-0135-007A0-XM ● ● ● ● ● ● 1.35 7.18 9.20 38.00 3.00 130.00 37.69 0.31 5.31 h6 JS7 462.1-0136-007A0-XM ● ● ● ● ● ● 1.36 7.16 9.20 38.00 3.00 130.00 37.68 0.32 5.26 h6 JS7 462.1-0137-007A0-XM ● ● ● ● ● ● 1.37 7.14 9.20 38.00 3.00 130.00 37.68 0.32 5.22 h6 JS7 462.1-0138-007A0-XM ● ● ● ● ● ● 1.38 7.13 9.20 38.00 3.00 130.00 37.68 0.32 5.17 h6 JS7 462.1-0139-007A0-XM ● ● ● ● ● ● 1.39 7.11 9.20 38.00 3.00 130.00 37.68 0.32 5.12 h6 JS7 ● = First choice ○ = Good choice 308
