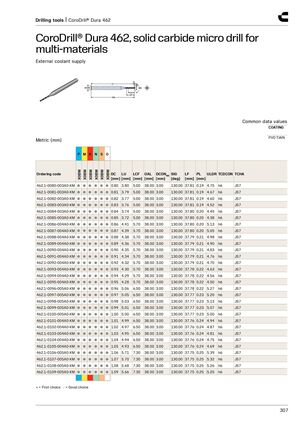

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Common data values COATING PVD TiAlN Metric (mm) P M K N S O X0BM X0BM X0BM X0BM X0BM X0BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0080-003A0-XM ● ● ● ● ● ● 0.80 3.80 5.00 38.00 3.00 130.00 37.81 0.19 4.75 h6 JS7 462.1-0081-003A0-XM ● ● ● ● ● ● 0.81 3.79 5.00 38.00 3.00 130.00 37.81 0.19 4.67 h6 JS7 462.1-0082-003A0-XM ● ● ● ● ● ● 0.82 3.77 5.00 38.00 3.00 130.00 37.81 0.19 4.60 h6 JS7 462.1-0083-003A0-XM ● ● ● ● ● ● 0.83 3.76 5.00 38.00 3.00 130.00 37.81 0.19 4.52 h6 JS7 462.1-0084-003A0-XM ● ● ● ● ● ● 0.84 3.74 5.00 38.00 3.00 130.00 37.80 0.20 4.45 h6 JS7 462.1-0085-003A0-XM ● ● ● ● ● ● 0.85 3.72 5.00 38.00 3.00 130.00 37.80 0.20 4.38 h6 JS7 462.1-0086-004A0-XM ● ● ● ● ● ● 0.86 4.41 5.70 38.00 3.00 130.00 37.80 0.20 5.13 h6 JS7 462.1-0087-004A0-XM ● ● ● ● ● ● 0.87 4.39 5.70 38.00 3.00 130.00 37.80 0.20 5.05 h6 JS7 462.1-0088-004A0-XM ● ● ● ● ● ● 0.88 4.38 5.70 38.00 3.00 130.00 37.79 0.21 4.98 h6 JS7 462.1-0089-004A0-XM ● ● ● ● ● ● 0.89 4.36 5.70 38.00 3.00 130.00 37.79 0.21 4.90 h6 JS7 462.1-0090-004A0-XM ● ● ● ● ● ● 0.90 4.35 5.70 38.00 3.00 130.00 37.79 0.21 4.83 h6 JS7 462.1-0091-004A0-XM ● ● ● ● ● ● 0.91 4.34 5.70 38.00 3.00 130.00 37.79 0.21 4.76 h6 JS7 462.1-0092-004A0-XM ● ● ● ● ● ● 0.92 4.32 5.70 38.00 3.00 130.00 37.79 0.21 4.70 h6 JS7 462.1-0093-004A0-XM ● ● ● ● ● ● 0.93 4.30 5.70 38.00 3.00 130.00 37.78 0.22 4.63 h6 JS7 462.1-0094-004A0-XM ● ● ● ● ● ● 0.94 4.29 5.70 38.00 3.00 130.00 37.78 0.22 4.56 h6 JS7 462.1-0095-004A0-XM ● ● ● ● ● ● 0.95 4.28 5.70 38.00 3.00 130.00 37.78 0.22 4.50 h6 JS7 462.1-0096-005A0-XM ● ● ● ● ● ● 0.96 5.06 6.50 38.00 3.00 130.00 37.78 0.22 5.27 h6 JS7 462.1-0097-005A0-XM ● ● ● ● ● ● 0.97 5.05 6.50 38.00 3.00 130.00 37.77 0.23 5.20 h6 JS7 462.1-0098-005A0-XM ● ● ● ● ● ● 0.98 5.03 6.50 38.00 3.00 130.00 37.77 0.23 5.13 h6 JS7 462.1-0099-005A0-XM ● ● ● ● ● ● 0.99 5.01 6.50 38.00 3.00 130.00 37.77 0.23 5.07 h6 JS7 462.1-0100-005A0-XM ● ● ● ● ● ● 1.00 5.00 6.50 38.00 3.00 130.00 37.77 0.23 5.00 h6 JS7 462.1-0101-004A0-XM ● ● ● ● ● ● 1.01 4.99 6.50 38.00 3.00 130.00 37.76 0.24 4.94 h6 JS7 462.1-0102-004A0-XM ● ● ● ● ● ● 1.02 4.97 6.50 38.00 3.00 130.00 37.76 0.24 4.87 h6 JS7 462.1-0103-004A0-XM ● ● ● ● ● ● 1.03 4.95 6.50 38.00 3.00 130.00 37.76 0.24 4.81 h6 JS7 462.1-0104-004A0-XM ● ● ● ● ● ● 1.04 4.94 6.50 38.00 3.00 130.00 37.76 0.24 4.75 h6 JS7 462.1-0105-004A0-XM ● ● ● ● ● ● 1.05 4.93 6.50 38.00 3.00 130.00 37.76 0.24 4.69 h6 JS7 462.1-0106-005A0-XM ● ● ● ● ● ● 1.06 5.71 7.30 38.00 3.00 130.00 37.75 0.25 5.39 h6 JS7 462.1-0107-005A0-XM ● ● ● ● ● ● 1.07 5.70 7.30 38.00 3.00 130.00 37.75 0.25 5.32 h6 JS7 462.1-0108-005A0-XM ● ● ● ● ● ● 1.08 5.68 7.30 38.00 3.00 130.00 37.75 0.25 5.26 h6 JS7 462.1-0109-005A0-XM ● ● ● ● ● ● 1.09 5.66 7.30 38.00 3.00 130.00 37.75 0.25 5.20 h6 JS7 ● = First choice ○ = Good choice 307
