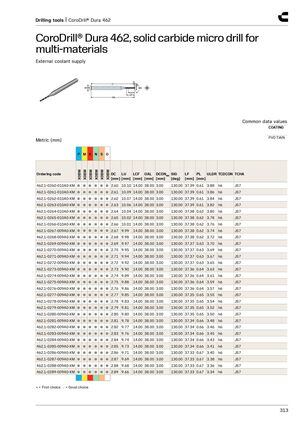

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials External coolant supply Common data values COATING PVD TiAlN Metric (mm) P M K N S O X0BM X0BM X0BM X0BM X0BM X0BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0260-010A0-XM ● ● ● ● ● ● 2.60 10.10 14.00 38.00 3.00 130.00 37.39 0.61 3.88 h6 JS7 462.1-0261-010A0-XM ● ● ● ● ● ● 2.61 10.09 14.00 38.00 3.00 130.00 37.39 0.61 3.86 h6 JS7 462.1-0262-010A0-XM ● ● ● ● ● ● 2.62 10.07 14.00 38.00 3.00 130.00 37.39 0.61 3.84 h6 JS7 462.1-0263-010A0-XM ● ● ● ● ● ● 2.63 10.06 14.00 38.00 3.00 130.00 37.39 0.61 3.82 h6 JS7 462.1-0264-010A0-XM ● ● ● ● ● ● 2.64 10.04 14.00 38.00 3.00 130.00 37.38 0.62 3.80 h6 JS7 462.1-0265-010A0-XM ● ● ● ● ● ● 2.65 10.02 14.00 38.00 3.00 130.00 37.38 0.62 3.78 h6 JS7 462.1-0266-010A0-XM ● ● ● ● ● ● 2.66 10.01 14.00 38.00 3.00 130.00 37.38 0.62 3.76 h6 JS7 462.1-0267-009A0-XM ● ● ● ● ● ● 2.67 9.99 14.00 38.00 3.00 130.00 37.38 0.62 3.74 h6 JS7 462.1-0268-009A0-XM ● ● ● ● ● ● 2.68 9.98 14.00 38.00 3.00 130.00 37.38 0.62 3.72 h6 JS7 462.1-0269-009A0-XM ● ● ● ● ● ● 2.69 9.97 14.00 38.00 3.00 130.00 37.37 0.63 3.70 h6 JS7 462.1-0270-009A0-XM ● ● ● ● ● ● 2.70 9.95 14.00 38.00 3.00 130.00 37.37 0.63 3.69 h6 JS7 462.1-0271-009A0-XM ● ● ● ● ● ● 2.71 9.94 14.00 38.00 3.00 130.00 37.37 0.63 3.67 h6 JS7 462.1-0272-009A0-XM ● ● ● ● ● ● 2.72 9.92 14.00 38.00 3.00 130.00 37.37 0.63 3.65 h6 JS7 462.1-0273-009A0-XM ● ● ● ● ● ● 2.73 9.90 14.00 38.00 3.00 130.00 37.36 0.64 3.63 h6 JS7 462.1-0274-009A0-XM ● ● ● ● ● ● 2.74 9.89 14.00 38.00 3.00 130.00 37.36 0.64 3.61 h6 JS7 462.1-0275-009A0-XM ● ● ● ● ● ● 2.75 9.88 14.00 38.00 3.00 130.00 37.36 0.64 3.59 h6 JS7 462.1-0276-009A0-XM ● ● ● ● ● ● 2.76 9.86 14.00 38.00 3.00 130.00 37.36 0.64 3.57 h6 JS7 462.1-0277-009A0-XM ● ● ● ● ● ● 2.77 9.85 14.00 38.00 3.00 130.00 37.35 0.65 3.55 h6 JS7 462.1-0278-009A0-XM ● ● ● ● ● ● 2.78 9.83 14.00 38.00 3.00 130.00 37.35 0.65 3.54 h6 JS7 462.1-0279-009A0-XM ● ● ● ● ● ● 2.79 9.81 14.00 38.00 3.00 130.00 37.35 0.65 3.52 h6 JS7 462.1-0280-009A0-XM ● ● ● ● ● ● 2.80 9.80 14.00 38.00 3.00 130.00 37.35 0.65 3.50 h6 JS7 462.1-0281-009A0-XM ● ● ● ● ● ● 2.81 9.78 14.00 38.00 3.00 130.00 37.34 0.66 3.48 h6 JS7 462.1-0282-009A0-XM ● ● ● ● ● ● 2.82 9.77 14.00 38.00 3.00 130.00 37.34 0.66 3.46 h6 JS7 462.1-0283-009A0-XM ● ● ● ● ● ● 2.83 9.76 14.00 38.00 3.00 130.00 37.34 0.66 3.45 h6 JS7 462.1-0284-009A0-XM ● ● ● ● ● ● 2.84 9.74 14.00 38.00 3.00 130.00 37.34 0.66 3.43 h6 JS7 462.1-0285-009A0-XM ● ● ● ● ● ● 2.85 9.73 14.00 38.00 3.00 130.00 37.34 0.66 3.41 h6 JS7 462.1-0286-009A0-XM ● ● ● ● ● ● 2.86 9.71 14.00 38.00 3.00 130.00 37.33 0.67 3.40 h6 JS7 462.1-0287-009A0-XM ● ● ● ● ● ● 2.87 9.69 14.00 38.00 3.00 130.00 37.33 0.67 3.38 h6 JS7 462.1-0288-009A0-XM ● ● ● ● ● ● 2.88 9.68 14.00 38.00 3.00 130.00 37.33 0.67 3.36 h6 JS7 462.1-0289-009A0-XM ● ● ● ● ● ● 2.89 9.66 14.00 38.00 3.00 130.00 37.33 0.67 3.34 h6 JS7 ● = First choice ○ = Good choice 313
