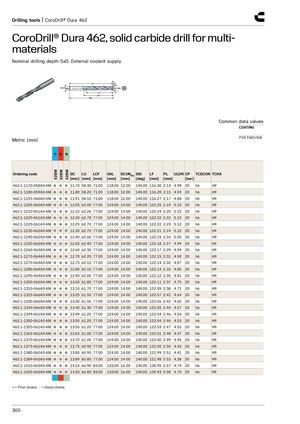

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide drill for multi- materials​​ Nominal drilling depth 5xD. External coolant supply Common data values COATING PVD TiAlCrSiN Metric (mm) P K N X2BM X2BM X2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 462.1-1170-058A0-XM ● ● ● 11.70 58.30 71.00 118.00 12.00 140.00 116.30 2.13 4.98 20 h6 H9 462.1-1180-059A0-XM ● ● ● 11.80 58.20 71.00 118.00 12.00 140.00 116.28 2.15 4.93 20 h6 H9 462.1-1191-060A0-XM ● ● ● 11.91 58.10 71.00 118.00 12.00 140.00 116.27 2.17 4.88 20 h6 H9 462.1-1205-060A0-XM ● ● ● 12.05 62.00 77.00 124.00 14.00 140.00 122.25 2.19 5.15 20 h6 H9 462.1-1210-061A0-XM ● ● ● 12.10 62.26 77.00 124.00 14.00 140.00 122.24 2.20 5.15 20 h6 H9 462.1-1220-061A0-XM ● ● ● 12.20 62.78 77.00 124.00 14.00 140.00 122.22 2.22 5.15 20 h6 H9 462.1-1225-061A0-XM ● ● ● 12.25 62.70 77.00 124.00 14.00 140.00 122.22 2.23 5.12 20 h6 H9 462.1-1230-062A0-XM ● ● ● 12.30 62.70 77.00 124.00 14.00 140.00 122.21 2.24 5.10 20 h6 H9 462.1-1240-062A0-XM ● ● ● 12.40 62.60 77.00 124.00 14.00 140.00 122.19 2.26 5.05 20 h6 H9 462.1-1250-063A0-XM ● ● ● 12.50 62.40 77.00 124.00 14.00 140.00 122.18 2.27 4.99 20 h6 H9 462.1-1260-063A0-XM ● ● ● 12.60 62.30 77.00 124.00 14.00 140.00 122.17 2.29 4.94 20 h6 H9 462.1-1270-064A0-XM ● ● ● 12.70 62.20 77.00 124.00 14.00 140.00 122.15 2.31 4.90 20 h6 H9 462.1-1275-064A0-XM ● ● ● 12.75 62.10 77.00 124.00 14.00 140.00 122.14 2.32 4.87 20 h6 H9 462.1-1280-064A0-XM ● ● ● 12.80 62.10 77.00 124.00 14.00 140.00 122.14 2.33 4.85 20 h6 H9 462.1-1290-064A0-XM ● ● ● 12.90 62.00 77.00 124.00 14.00 140.00 122.12 2.35 4.81 20 h6 H9 462.1-1300-065A0-XM ● ● ● 13.00 61.80 77.00 124.00 14.00 140.00 122.11 2.37 4.75 20 h6 H9 462.1-1310-066A0-XM ● ● ● 13.10 61.70 77.00 124.00 14.00 140.00 122.09 2.38 4.71 20 h6 H9 462.1-1325-066A0-XM ● ● ● 13.25 61.50 77.00 124.00 14.00 140.00 122.07 2.41 4.64 20 h6 H9 462.1-1330-066A0-XM ● ● ● 13.30 61.50 77.00 124.00 14.00 140.00 122.06 2.42 4.62 20 h6 H9 462.1-1340-066A0-XM ● ● ● 13.40 61.30 77.00 124.00 14.00 140.00 122.05 2.44 4.57 20 h6 H9 462.1-1349-061A0-XM ● ● ● 13.49 61.20 77.00 124.00 14.00 140.00 122.04 2.46 4.54 20 h6 H9 462.1-1350-061A0-XM ● ● ● 13.50 61.20 77.00 124.00 14.00 140.00 122.04 2.46 4.53 20 h6 H9 462.1-1355-061A0-XM ● ● ● 13.55 61.20 77.00 124.00 14.00 140.00 122.03 2.47 4.52 20 h6 H9 462.1-1365-061A0-XM ● ● ● 13.65 61.00 77.00 124.00 14.00 140.00 122.01 2.48 4.47 20 h6 H9 462.1-1370-061A0-XM ● ● ● 13.70 61.00 77.00 124.00 14.00 140.00 122.00 2.49 4.45 20 h6 H9 462.1-1375-061A0-XM ● ● ● 13.75 60.90 77.00 124.00 14.00 140.00 122.00 2.50 4.43 20 h6 H9 462.1-1380-062A0-XM ● ● ● 13.80 60.90 77.00 124.00 14.00 140.00 121.99 2.51 4.41 20 h6 H9 462.1-1389-063A0-XM ● ● ● 13.89 60.80 77.00 124.00 14.00 140.00 121.98 2.53 4.38 20 h6 H9 462.1-1410-063A0-XM ● ● ● 14.10 66.90 83.00 133.00 16.00 140.00 130.95 2.57 4.74 20 h6 H9 462.1-1420-063A0-XM ● ● ● 14.20 66.80 83.00 133.00 16.00 140.00 130.93 2.58 4.70 20 h6 H9 ● = First choice ○ = Good choice 300
