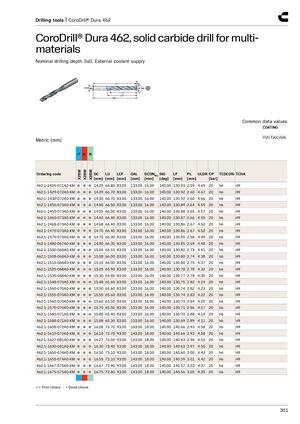

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide drill for multi- materials​​ Nominal drilling depth 5xD. External coolant supply Common data values COATING PVD TiAlCrSiN Metric (mm) P K N X2BM X2BM X2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 462.1-1425-071A0-XM ● ● ● 14.25 66.80 83.00 133.00 16.00 140.00 130.93 2.59 4.69 20 h6 H9 462.1-1429-072A0-XM ● ● ● 14.29 66.70 83.00 133.00 16.00 140.00 130.92 2.60 4.67 20 h6 H9 462.1-1430-072A0-XM ● ● ● 14.30 66.70 83.00 133.00 16.00 140.00 130.92 2.60 4.66 20 h6 H9 462.1-1450-073A0-XM ● ● ● 14.50 66.50 83.00 133.00 16.00 140.00 130.89 2.64 4.59 20 h6 H9 462.1-1455-073A0-XM ● ● ● 14.55 66.50 83.00 133.00 16.00 140.00 130.88 2.65 4.57 20 h6 H9 462.1-1460-073A0-XM ● ● ● 14.60 66.40 83.00 133.00 16.00 140.00 130.87 2.66 4.55 20 h6 H9 462.1-1468-073A0-XM ● ● ● 14.68 66.40 83.00 133.00 16.00 140.00 130.86 2.67 4.52 20 h6 H9 462.1-1470-073A0-XM ● ● ● 14.70 66.40 83.00 133.00 16.00 140.00 130.86 2.67 4.52 20 h6 H9 462.1-1475-073A0-XM ● ● ● 14.75 66.30 83.00 133.00 16.00 140.00 130.85 2.68 4.49 20 h6 H9 462.1-1480-067A0-XM ● ● ● 14.80 66.30 83.00 133.00 16.00 140.00 130.85 2.69 4.48 20 h6 H9 462.1-1500-068A0-XM ● ● ● 15.00 66.10 83.00 133.00 16.00 140.00 130.82 2.73 4.41 20 h6 H9 462.1-1508-068A0-XM ● ● ● 15.08 66.00 83.00 133.00 16.00 140.00 130.80 2.74 4.38 20 h6 H9 462.1-1510-068A0-XM ● ● ● 15.10 66.00 83.00 133.00 16.00 140.00 130.80 2.75 4.37 20 h6 H9 462.1-1525-068A0-XM ● ● ● 15.25 65.90 83.00 133.00 16.00 140.00 130.78 2.78 4.32 20 h6 H9 462.1-1530-068A0-XM ● ● ● 15.30 65.80 83.00 133.00 16.00 140.00 130.77 2.78 4.30 20 h6 H9 462.1-1548-070A0-XM ● ● ● 15.48 65.60 83.00 133.00 16.00 140.00 130.75 2.82 4.24 20 h6 H9 462.1-1550-070A0-XM ● ● ● 15.50 65.60 83.00 133.00 16.00 140.00 130.74 2.82 4.23 20 h6 H9 462.1-1555-070A0-XM ● ● ● 15.55 65.60 83.00 133.00 16.00 140.00 130.74 2.83 4.22 20 h6 H9 462.1-1560-070A0-XM ● ● ● 15.60 65.50 83.00 133.00 16.00 140.00 130.73 2.84 4.20 20 h6 H9 462.1-1570-070A0-XM ● ● ● 15.70 65.50 83.00 133.00 16.00 140.00 130.71 2.86 4.17 20 h6 H9 462.1-1580-071A0-XM ● ● ● 15.80 65.40 83.00 133.00 16.00 140.00 130.70 2.88 4.14 20 h6 H9 462.1-1588-071A0-XM ● ● ● 15.88 65.30 83.00 133.00 16.00 140.00 130.69 2.89 4.11 20 h6 H9 462.1-1608-072A0-XM ● ● ● 16.08 73.70 93.00 143.00 18.00 140.00 140.66 2.93 4.58 20 h6 H9 462.1-1610-072A0-XM ● ● ● 16.10 73.70 93.00 143.00 18.00 140.00 140.66 2.93 4.58 20 h6 H9 462.1-1627-081A0-XM ● ● ● 16.27 73.50 93.00 143.00 18.00 140.00 140.63 2.96 4.52 20 h6 H9 462.1-1630-081A0-XM ● ● ● 16.30 73.40 93.00 143.00 18.00 140.00 140.63 2.97 4.50 20 h6 H9 462.1-1650-074A0-XM ● ● ● 16.50 73.10 93.00 143.00 18.00 140.00 140.60 3.00 4.43 20 h6 H9 462.1-1655-074A0-XM ● ● ● 16.55 73.10 93.00 143.00 18.00 140.00 140.59 3.01 4.42 20 h6 H9 462.1-1667-075A0-XM ● ● ● 16.67 72.90 93.00 143.00 18.00 140.00 140.57 3.03 4.37 20 h6 H9 462.1-1675-075A0-XM ● ● ● 16.75 72.80 93.00 143.00 18.00 140.00 140.56 3.05 4.35 20 h6 H9 ● = First choice ○ = Good choice 301
