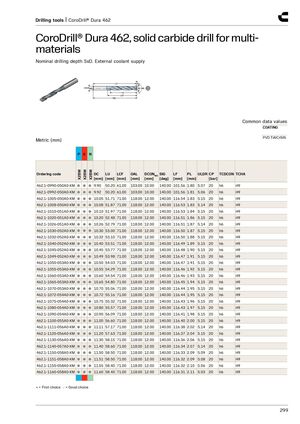

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide drill for multi- materials Nominal drilling depth 5xD. External coolant supply Common data values COATING PVD TiAlCrSiN Metric (mm) P K N X2BM X2BM X2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 462.1-0990-050A0-XM ● ● ● 9.90 50.20 61.00 103.00 10.00 140.00 101.56 1.80 5.07 20 h6 H9 462.1-0992-050A0-XM ● ● ● 9.92 50.20 61.00 103.00 10.00 140.00 101.56 1.81 5.06 20 h6 H9 462.1-1005-050A0-XM ● ● ● 10.05 51.71 71.00 118.00 12.00 140.00 116.54 1.83 5.15 20 h6 H9 462.1-1008-050A0-XM ● ● ● 10.08 51.87 71.00 118.00 12.00 140.00 116.53 1.83 5.14 20 h6 H9 462.1-1010-051A0-XM ● ● ● 10.10 51.97 71.00 118.00 12.00 140.00 116.53 1.84 5.15 20 h6 H9 462.1-1020-051A0-XM ● ● ● 10.20 52.48 71.00 118.00 12.00 140.00 116.51 1.86 5.15 20 h6 H9 462.1-1026-051A0-XM ● ● ● 10.26 52.79 71.00 118.00 12.00 140.00 116.51 1.87 5.14 20 h6 H9 462.1-1030-052A0-XM ● ● ● 10.30 53.00 71.00 118.00 12.00 140.00 116.50 1.87 5.15 20 h6 H9 462.1-1032-052A0-XM ● ● ● 10.32 53.10 71.00 118.00 12.00 140.00 116.50 1.88 5.15 20 h6 H9 462.1-1040-052A0-XM ● ● ● 10.40 53.51 71.00 118.00 12.00 140.00 116.49 1.89 5.15 20 h6 H9 462.1-1045-052A0-XM ● ● ● 10.45 53.77 71.00 118.00 12.00 140.00 116.48 1.90 5.15 20 h6 H9 462.1-1049-052A0-XM ● ● ● 10.49 53.98 71.00 118.00 12.00 140.00 116.47 1.91 5.15 20 h6 H9 462.1-1050-053A0-XM ● ● ● 10.50 54.03 71.00 118.00 12.00 140.00 116.47 1.91 5.15 20 h6 H9 462.1-1055-053A0-XM ● ● ● 10.55 54.29 71.00 118.00 12.00 140.00 116.46 1.92 5.15 20 h6 H9 462.1-1060-053A0-XM ● ● ● 10.60 54.54 71.00 118.00 12.00 140.00 116.46 1.93 5.15 20 h6 H9 462.1-1065-053A0-XM ● ● ● 10.65 54.80 71.00 118.00 12.00 140.00 116.45 1.94 5.15 20 h6 H9 462.1-1070-053A0-XM ● ● ● 10.70 55.06 71.00 118.00 12.00 140.00 116.44 1.95 5.15 20 h6 H9 462.1-1072-054A0-XM ● ● ● 10.72 55.16 71.00 118.00 12.00 140.00 116.44 1.95 5.15 20 h6 H9 462.1-1075-054A0-XM ● ● ● 10.75 55.32 71.00 118.00 12.00 140.00 116.43 1.96 5.15 20 h6 H9 462.1-1080-054A0-XM ● ● ● 10.80 55.57 71.00 118.00 12.00 140.00 116.43 1.97 5.15 20 h6 H9 462.1-1090-054A0-XM ● ● ● 10.90 56.09 71.00 118.00 12.00 140.00 116.41 1.98 5.15 20 h6 H9 462.1-1100-055A0-XM ● ● ● 11.00 56.60 71.00 118.00 12.00 140.00 116.40 2.00 5.15 20 h6 H9 462.1-1111-056A0-XM ● ● ● 11.11 57.17 71.00 118.00 12.00 140.00 116.38 2.02 5.14 20 h6 H9 462.1-1120-056A0-XM ● ● ● 11.20 57.63 71.00 118.00 12.00 140.00 116.37 2.04 5.15 20 h6 H9 462.1-1130-056A0-XM ● ● ● 11.30 58.15 71.00 118.00 12.00 140.00 116.36 2.06 5.15 20 h6 H9 462.1-1140-057A0-XM ● ● ● 11.40 58.60 71.00 118.00 12.00 140.00 116.34 2.07 5.14 20 h6 H9 462.1-1150-058A0-XM ● ● ● 11.50 58.50 71.00 118.00 12.00 140.00 116.33 2.09 5.09 20 h6 H9 462.1-1151-058A0-XM ● ● ● 11.51 58.50 71.00 118.00 12.00 140.00 116.32 2.09 5.08 20 h6 H9 462.1-1155-058A0-XM ● ● ● 11.55 58.40 71.00 118.00 12.00 140.00 116.32 2.10 5.06 20 h6 H9 462.1-1160-058A0-XM ● ● ● 11.60 58.40 71.00 118.00 12.00 140.00 116.31 2.11 5.03 20 h6 H9 ● = First choice ○ = Good choice 299
