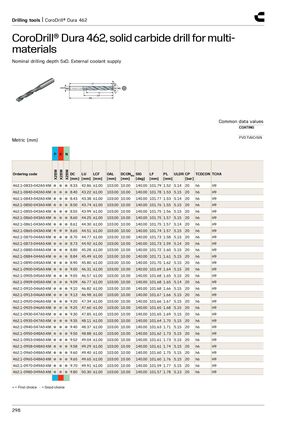

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide drill for multi- materials Nominal drilling depth 5xD. External coolant supply Common data values COATING PVD TiAlCrSiN Metric (mm) P K N X2BM X2BM X2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 462.1-0833-042A0-XM ● ● ● 8.33 42.86 61.00 103.00 10.00 140.00 101.79 1.52 5.14 20 h6 H9 462.1-0840-042A0-XM ● ● ● 8.40 43.22 61.00 103.00 10.00 140.00 101.78 1.53 5.15 20 h6 H9 462.1-0843-042A0-XM ● ● ● 8.43 43.38 61.00 103.00 10.00 140.00 101.77 1.53 5.14 20 h6 H9 462.1-0850-043A0-XM ● ● ● 8.50 43.74 61.00 103.00 10.00 140.00 101.76 1.55 5.15 20 h6 H9 462.1-0855-043A0-XM ● ● ● 8.55 43.99 61.00 103.00 10.00 140.00 101.75 1.56 5.15 20 h6 H9 462.1-0860-043A0-XM ● ● ● 8.60 44.25 61.00 103.00 10.00 140.00 101.75 1.57 5.15 20 h6 H9 462.1-0861-043A0-XM ● ● ● 8.61 44.30 61.00 103.00 10.00 140.00 101.75 1.57 5.14 20 h6 H9 462.1-0865-043A0-XM ● ● ● 8.65 44.51 61.00 103.00 10.00 140.00 101.74 1.57 5.15 20 h6 H9 462.1-0870-044A0-XM ● ● ● 8.70 44.77 61.00 103.00 10.00 140.00 101.73 1.58 5.15 20 h6 H9 462.1-0873-044A0-XM ● ● ● 8.73 44.92 61.00 103.00 10.00 140.00 101.73 1.59 5.14 20 h6 H9 462.1-0880-044A0-XM ● ● ● 8.80 45.28 61.00 103.00 10.00 140.00 101.72 1.60 5.15 20 h6 H9 462.1-0884-044A0-XM ● ● ● 8.84 45.49 61.00 103.00 10.00 140.00 101.71 1.61 5.15 20 h6 H9 462.1-0890-045A0-XM ● ● ● 8.90 45.80 61.00 103.00 10.00 140.00 101.70 1.62 5.15 20 h6 H9 462.1-0900-045A0-XM ● ● ● 9.00 46.31 61.00 103.00 10.00 140.00 101.69 1.64 5.15 20 h6 H9 462.1-0905-045A0-XM ● ● ● 9.05 46.57 61.00 103.00 10.00 140.00 101.68 1.65 5.15 20 h6 H9 462.1-0909-045A0-XM ● ● ● 9.09 46.77 61.00 103.00 10.00 140.00 101.68 1.65 5.14 20 h6 H9 462.1-0910-046A0-XM ● ● ● 9.10 46.82 61.00 103.00 10.00 140.00 101.68 1.66 5.15 20 h6 H9 462.1-0913-046A0-XM ● ● ● 9.13 46.98 61.00 103.00 10.00 140.00 101.67 1.66 5.15 20 h6 H9 462.1-0920-046A0-XM ● ● ● 9.20 47.34 61.00 103.00 10.00 140.00 101.66 1.67 5.15 20 h6 H9 462.1-0925-046A0-XM ● ● ● 9.25 47.60 61.00 103.00 10.00 140.00 101.65 1.68 5.15 20 h6 H9 462.1-0930-047A0-XM ● ● ● 9.30 47.85 61.00 103.00 10.00 140.00 101.65 1.69 5.15 20 h6 H9 462.1-0935-047A0-XM ● ● ● 9.35 48.11 61.00 103.00 10.00 140.00 101.64 1.70 5.15 20 h6 H9 462.1-0940-047A0-XM ● ● ● 9.40 48.37 61.00 103.00 10.00 140.00 101.63 1.71 5.15 20 h6 H9 462.1-0950-048A0-XM ● ● ● 9.50 48.88 61.00 103.00 10.00 140.00 101.62 1.73 5.15 20 h6 H9 462.1-0953-048A0-XM ● ● ● 9.52 49.04 61.00 103.00 10.00 140.00 101.61 1.73 5.15 20 h6 H9 462.1-0958-048A0-XM ● ● ● 9.58 49.29 61.00 103.00 10.00 140.00 101.61 1.74 5.15 20 h6 H9 462.1-0960-048A0-XM ● ● ● 9.60 49.40 61.00 103.00 10.00 140.00 101.60 1.75 5.15 20 h6 H9 462.1-0965-048A0-XM ● ● ● 9.65 49.65 61.00 103.00 10.00 140.00 101.60 1.76 5.15 20 h6 H9 462.1-0970-049A0-XM ● ● ● 9.70 49.91 61.00 103.00 10.00 140.00 101.59 1.77 5.15 20 h6 H9 462.1-0980-049A0-XM ● ● ● 9.80 50.30 61.00 103.00 10.00 140.00 101.57 1.78 5.13 20 h6 H9 ● = First choice ○ = Good choice 298
