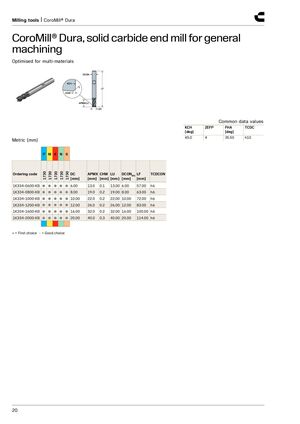

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials Common data values KCH ZEFP FHA TCDC [deg] [deg] 45.0 4 35.50 h10 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX CHW LU DCONMS LF TCDCON [mm] [mm] [mm] [mm] [mm] [mm] 1K334-0600-XB ● ● ● ● ● 6.00 13.0 0.1 13.00 6.00 57.00 h6 1K334-0800-XB ● ● ● ● ● 8.00 19.0 0.2 19.00 8.00 63.00 h6 1K334-1000-XB ● ● ● ● ● 10.00 22.0 0.2 22.00 10.00 72.00 h6 1K334-1200-XB ● ● ● ● ● 12.00 26.0 0.2 26.00 12.00 83.00 h6 1K334-1600-XB ● ● ● ● ● 16.00 32.0 0.2 32.00 16.00 100.00 h6 1K334-2000-XB ● ● ● ● ● 20.00 40.0 0.3 40.00 20.00 114.00 h6 ● = First choice ○ = Good choice 20
