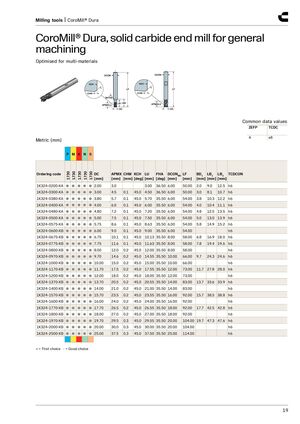

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials Common data values ZEFP TCDC 4 e8 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX CHW KCH LU FHA DCONMS LF BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [deg] [mm] [deg] [mm] [mm] [mm] [mm] [mm] 1K324-0200-XA ● ● ● ● ● 2.00 3.0 3.00 36.50 6.00 50.00 2.0 9.0 12.5 h6 1K324-0300-XA ● ● ● ● ● 3.00 4.5 0.1 45.0 4.50 36.50 6.00 50.00 3.0 8.1 10.7 h6 1K324-0380-XA ● ● ● ● ● 3.80 5.7 0.1 45.0 5.70 35.50 6.00 54.00 3.8 10.3 12.2 h6 1K324-0400-XA ● ● ● ● ● 4.00 6.0 0.1 45.0 6.00 35.50 6.00 54.00 4.0 10.4 11.1 h6 1K324-0480-XA ● ● ● ● ● 4.80 7.2 0.1 45.0 7.20 35.50 6.00 54.00 4.8 12.5 13.5 h6 1K324-0500-XA ● ● ● ● ● 5.00 7.5 0.1 45.0 7.50 35.50 6.00 54.00 5.0 13.0 13.9 h6 1K324-0575-XA ● ● ● ● ● 5.75 8.6 0.1 45.0 8.63 35.50 6.00 54.00 5.8 14.9 15.2 h6 1K324-0600-XB ● ● ● ● ● 6.00 9.0 0.1 45.0 9.00 35.50 6.00 54.00 h6 1K324-0675-XB ● ● ● ● ● 6.75 10.1 0.1 45.0 10.13 35.50 8.00 58.00 6.8 16.9 18.0 h6 1K324-0775-XB ● ● ● ● ● 7.75 11.6 0.1 45.0 11.63 35.50 8.00 58.00 7.8 19.4 19.6 h6 1K324-0800-XB ● ● ● ● ● 8.00 12.0 0.2 45.0 12.00 35.50 8.00 58.00 h6 1K324-0970-XB ● ● ● ● ● 9.70 14.6 0.2 45.0 14.55 35.50 10.00 66.00 9.7 24.3 24.6 h6 1K324-1000-XB ● ● ● ● ● 10.00 15.0 0.2 45.0 15.00 35.50 10.00 66.00 h6 1K324-1170-XB ● ● ● ● ● 11.70 17.5 0.2 45.0 17.55 35.50 12.00 73.00 11.7 27.8 28.0 h6 1K324-1200-XB ● ● ● ● ● 12.00 18.0 0.2 45.0 18.00 35.50 12.00 73.00 h6 1K324-1370-XB ● ● ● ● ● 13.70 20.5 0.2 45.0 20.55 35.50 14.00 83.00 13.7 33.6 33.9 h6 1K324-1400-XB ● ● ● ● ● 14.00 21.0 0.2 45.0 21.00 35.50 14.00 83.00 h6 1K324-1570-XB ● ● ● ● ● 15.70 23.5 0.2 45.0 23.55 35.50 16.00 92.00 15.7 38.5 38.8 h6 1K324-1600-XB ● ● ● ● ● 16.00 24.0 0.2 45.0 24.00 35.50 16.00 92.00 h6 1K324-1770-XB ● ● ● ● ● 17.70 26.5 0.2 45.0 26.55 35.50 18.00 92.00 17.7 42.5 42.8 h6 1K324-1800-XB ● ● ● ● ● 18.00 27.0 0.2 45.0 27.00 35.50 18.00 92.00 h6 1K324-1970-XB ● ● ● ● ● 19.70 29.5 0.3 45.0 29.55 35.50 20.00 104.00 19.7 47.3 47.6 h6 1K324-2000-XB ● ● ● ● ● 20.00 30.0 0.3 45.0 30.00 35.50 20.00 104.00 h6 1K324-2500-XB ● ● ● ● ● 25.00 37.5 0.3 45.0 37.50 35.50 25.00 114.00 h6 ● = First choice ○ = Good choice 19
