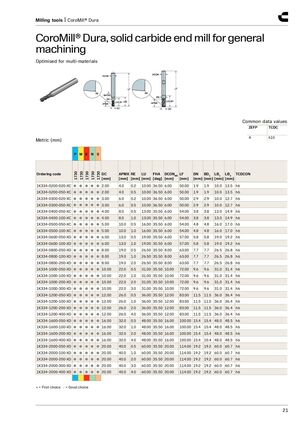

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials Common data values ZEFP TCDC 4 h10 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX RE LU FHA DCONMS LF DN BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [mm] 1K334-0200-020-XC ● ● ● ● ● 2.00 4.0 0.2 10.00 36.50 6.00 50.00 1.9 1.9 10.0 13.5 h6 1K334-0200-050-XC ● ● ● ● ● 2.00 4.0 0.5 10.00 36.50 6.00 50.00 1.9 1.9 10.0 13.5 h6 1K334-0300-020-XC ● ● ● ● ● 3.00 6.0 0.2 10.00 36.50 6.00 50.00 2.9 2.9 10.0 12.7 h6 1K334-0300-050-XC ● ● ● ● ● 3.00 6.0 0.5 10.00 36.50 6.00 50.00 2.9 2.9 10.0 12.7 h6 1K334-0400-050-XC ● ● ● ● ● 4.00 8.0 0.5 13.00 35.50 6.00 54.00 3.8 3.8 13.0 14.9 h6 1K334-0400-100-XC ● ● ● ● ● 4.00 8.0 1.0 13.00 35.50 6.00 54.00 3.8 3.8 13.0 14.9 h6 1K334-0500-050-XC ● ● ● ● ● 5.00 10.0 0.5 16.00 35.50 6.00 54.00 4.8 4.8 16.0 17.0 h6 1K334-0500-100-XC ● ● ● ● ● 5.00 10.0 1.0 16.00 35.50 6.00 54.00 4.8 4.8 16.0 17.0 h6 1K334-0600-050-XD ● ● ● ● ● 6.00 13.0 0.5 19.00 35.50 6.00 57.00 5.8 5.8 19.0 19.2 h6 1K334-0600-100-XD ● ● ● ● ● 6.00 13.0 1.0 19.00 35.50 6.00 57.00 5.8 5.8 19.0 19.2 h6 1K334-0800-050-XD ● ● ● ● ● 8.00 19.0 0.5 26.50 35.50 8.00 63.00 7.7 7.7 26.5 26.8 h6 1K334-0800-100-XD ● ● ● ● ● 8.00 19.0 1.0 26.50 35.50 8.00 63.00 7.7 7.7 26.5 26.8 h6 1K334-0800-200-XD ● ● ● ● ● 8.00 19.0 2.0 26.50 35.50 8.00 63.00 7.7 7.7 26.5 26.8 h6 1K334-1000-050-XD ● ● ● ● ● 10.00 22.0 0.5 31.00 35.50 10.00 72.00 9.6 9.6 31.0 31.4 h6 1K334-1000-100-XD ● ● ● ● ● 10.00 22.0 1.0 31.00 35.50 10.00 72.00 9.6 9.6 31.0 31.4 h6 1K334-1000-200-XD ● ● ● ● ● 10.00 22.0 2.0 31.00 35.50 10.00 72.00 9.6 9.6 31.0 31.4 h6 1K334-1000-300-XD ● ● ● ● ● 10.00 22.0 3.0 31.00 35.50 10.00 72.00 9.6 9.6 31.0 31.4 h6 1K334-1200-050-XD ● ● ● ● ● 12.00 26.0 0.5 36.00 35.50 12.00 83.00 11.5 11.5 36.0 36.4 h6 1K334-1200-100-XD ● ● ● ● ● 12.00 26.0 1.0 36.00 35.50 12.00 83.00 11.5 11.5 36.0 36.4 h6 1K334-1200-200-XD ● ● ● ● ● 12.00 26.0 2.0 36.00 35.50 12.00 83.00 11.5 11.5 36.0 36.4 h6 1K334-1200-400-XD ● ● ● ● ● 12.00 26.0 4.0 36.00 35.50 12.00 83.00 11.5 11.5 36.0 36.4 h6 1K334-1600-050-XD ● ● ● ● ● 16.00 32.0 0.5 48.00 35.50 16.00 100.00 15.4 15.4 48.0 48.5 h6 1K334-1600-100-XD ● ● ● ● ● 16.00 32.0 1.0 48.00 35.50 16.00 100.00 15.4 15.4 48.0 48.5 h6 1K334-1600-200-XD ● ● ● ● ● 16.00 32.0 2.0 48.00 35.50 16.00 100.00 15.4 15.4 48.0 48.5 h6 1K334-1600-400-XD ● ● ● ● ● 16.00 32.0 4.0 48.00 35.50 16.00 100.00 15.4 15.4 48.0 48.5 h6 1K334-2000-050-XD ● ● ● ● ● 20.00 40.0 0.5 60.00 35.50 20.00 114.00 19.2 19.2 60.0 60.7 h6 1K334-2000-100-XD ● ● ● ● ● 20.00 40.0 1.0 60.00 35.50 20.00 114.00 19.2 19.2 60.0 60.7 h6 1K334-2000-200-XD ● ● ● ● ● 20.00 40.0 2.0 60.00 35.50 20.00 114.00 19.2 19.2 60.0 60.7 h6 1K334-2000-300-XD ● ● ● ● ● 20.00 40.0 3.0 60.00 35.50 20.00 114.00 19.2 19.2 60.0 60.7 h6 1K334-2000-400-XD ● ● ● ● ● 20.00 40.0 4.0 60.00 35.50 20.00 114.00 19.2 19.2 60.0 60.7 h6 ● = First choice ○ = Good choice 21
