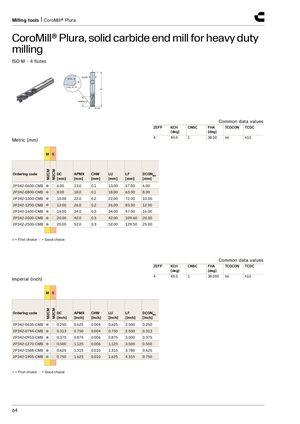

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-M - 4 flutes DCON KCH CHW LF APMX/LU DC Common data values ZEFP KCH CNSC FHA TCDCON TCDC [deg] [deg] 4 45.0 1 38.00 h6 h10 Metric (mm) M S M2CM M2CM Ordering code DC APMX CHW LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2P342-0600-CMB ● ○ 6.00 13.0 0.1 13.00 57.00 6.00 2P342-0800-CMB ● ○ 8.00 18.0 0.1 18.00 63.00 8.00 2P342-1000-CMB ● ○ 10.00 22.0 0.2 22.00 72.00 10.00 2P342-1200-CMB ● ○ 12.00 26.0 0.2 26.00 83.00 12.00 2P342-1600-CMB ● ○ 16.00 34.0 0.3 34.00 97.00 16.00 2P342-2000-CMB ● ○ 20.00 42.0 0.3 42.00 109.60 20.00 2P342-2500-CMB ● ○ 25.00 52.0 0.3 52.00 129.50 25.00 ● = First choice ○ = Good choice Common data values ZEFP KCH CNSC FHA TCDCON TCDC [deg] [deg] 4 45.0 1 38.000 h6 h10 Imperial (inch) M S M2CM M2CM Ordering code DC APMX CHW LU LF DCONMS [inch] [inch] [inch] [inch] [inch] [inch] 2P342-0635-CMB ● ○ 0.250 0.625 0.004 0.625 2.500 0.250 2P342-0794-CMB ● ○ 0.313 0.750 0.004 0.750 2.500 0.313 2P342-0953-CMB ● ○ 0.375 0.875 0.006 0.875 3.000 0.375 2P342-1270-CMB ● ○ 0.500 1.125 0.006 1.125 3.500 0.500 2P342-1588-CMB ● ○ 0.625 1.315 0.010 1.315 3.780 0.625 2P342-1905-CMB ● ○ 0.750 1.625 0.010 1.625 4.315 0.750 ● = First choice ○ = Good choice 64
