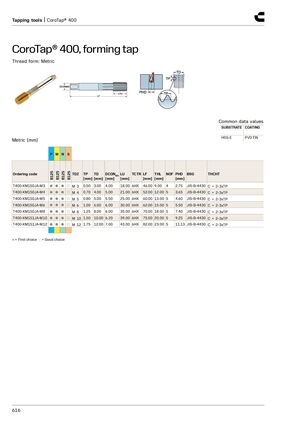

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric Common data values SUBSTRATE COATING HSS-E PVD TiN Metric (mm) P M N S B125 B125 B125 B125 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-XM150JA-M3 ● ● ● ○ M 3 0.50 3.00 4.00 18.00 6HX 46.00 9.00 4 2.75 JIS-B-4430 C = 2-3xTP T400-XM150JA-M4 ● ● ● ○ M 4 0.70 4.00 5.00 21.00 6HX 52.00 12.00 5 3.65 JIS-B-4430 C = 2-3xTP T400-XM150JA-M5 ● ● ● ○ M 5 0.80 5.00 5.50 25.00 6HX 60.00 13.00 5 4.60 JIS-B-4430 C = 2-3xTP T400-XM150JA-M6 ● ● ● ○ M 6 1.00 6.00 6.00 30.00 6HX 62.00 15.00 5 5.50 JIS-B-4430 C = 2-3xTP T400-XM150JA-M8 ● ● ● ○ M 8 1.25 8.00 6.00 35.00 6HX 70.00 18.00 5 7.40 JIS-B-4430 C = 2-3xTP T400-XM151JA-M10 ● ● ● ○ M 10 1.50 10.00 6.20 39.00 6HX 75.00 20.00 5 9.25 JIS-B-4430 C = 2-3xTP T400-XM151JA-M12 ● ● ● ○ M 12 1.75 12.00 7.00 43.00 6HX 82.00 23.00 5 11.13 JIS-B-4430 C = 2-3xTP ● = First choice ○ = Good choice 616
