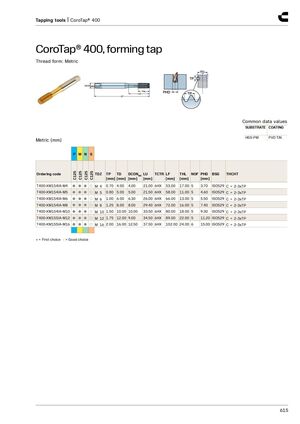

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric Common data values SUBSTRATE COATING HSS-PM PVD TiN Metric (mm) P M N S C125 C125 C125 C125 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-XM154IA-M4 ● ● ● ○ M 4 0.70 4.00 4.00 21.00 6HX 53.00 17.00 5 3.70 ISO529 C = 2-3xTP T400-XM154IA-M5 ● ● ● ○ M 5 0.80 5.00 5.00 21.50 6HX 58.00 11.00 5 4.60 ISO529 C = 2-3xTP T400-XM154IA-M6 ● ● ● ○ M 6 1.00 6.00 6.30 26.00 6HX 66.00 13.00 5 5.50 ISO529 C = 2-3xTP T400-XM154IA-M8 ● ● ● ○ M 8 1.25 8.00 8.00 29.40 6HX 72.00 16.00 5 7.40 ISO529 C = 2-3xTP T400-XM154IA-M10 ● ● ● ○ M 10 1.50 10.00 10.00 33.50 6HX 80.00 18.00 5 9.30 ISO529 C = 2-3xTP T400-XM155IA-M12 ● ● ● ○ M 12 1.75 12.00 9.00 34.50 6HX 89.00 22.00 5 11.20 ISO529 C = 2-3xTP T400-XM155IA-M16 ● ● ● ○ M 16 2.00 16.00 12.50 37.50 6HX 102.00 24.00 6 15.00 ISO529 C = 2-3xTP ● = First choice ○ = Good choice 615
