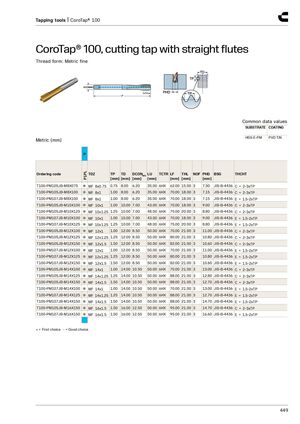

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: Metric fine THL Common data values SUBSTRATE COATING HSS-E-PM PVD TiN Metric (mm) P P1PL Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-PM105JB-M8X075 ● MF 8x0.75 0.75 8.00 6.20 35.00 6HX 62.00 15.00 3 7.30 JIS-B-4436 C = 2-3xTP T100-PM105JB-M8X100 ● MF 8x1 1.00 8.00 6.20 35.00 6HX 70.00 18.00 3 7.15 JIS-B-4436 C = 2-3xTP T100-PM107JB-M8X100 ● MF 8x1 1.00 8.00 6.20 35.00 6HX 70.00 18.00 3 7.15 JIS-B-4436 E = 1.5-2xTP T100-PM105JB-M10X100 ● MF 10x1 1.00 10.00 7.00 43.00 6HX 70.00 18.00 3 9.00 JIS-B-4436 C = 2-3xTP T100-PM105JB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 48.00 6HX 75.00 20.00 3 8.80 JIS-B-4436 C = 2-3xTP T100-PM107JB-M10X100 ● MF 10x1 1.00 10.00 7.00 43.00 6HX 70.00 18.00 3 9.00 JIS-B-4436 E = 1.5-2xTP T100-PM107JB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 48.00 6HX 75.00 20.00 3 8.80 JIS-B-4436 E = 1.5-2xTP T100-PM105JB-M12X100 ● MF 12x1 1.00 12.00 8.50 50.00 6HX 70.00 21.00 3 11.00 JIS-B-4436 C = 2-3xTP T100-PM105JB-M12X125 ● MF 12x1.25 1.25 12.00 8.50 50.00 6HX 80.00 21.00 3 10.80 JIS-B-4436 C = 2-3xTP T100-PM105JB-M12X150 ● MF 12x1.5 1.50 12.00 8.50 50.00 6HX 82.00 21.00 3 10.60 JIS-B-4436 C = 2-3xTP T100-PM107JB-M12X100 ● MF 12x1 1.00 12.00 8.50 50.00 6HX 70.00 21.00 3 11.00 JIS-B-4436 E = 1.5-2xTP T100-PM107JB-M12X125 ● MF 12x1.25 1.25 12.00 8.50 50.00 6HX 80.00 21.00 3 10.80 JIS-B-4436 E = 1.5-2xTP T100-PM107JB-M12X150 ● MF 12x1.5 1.50 12.00 8.50 50.00 6HX 82.00 21.00 3 10.60 JIS-B-4436 E = 1.5-2xTP T100-PM105JB-M14X100 ● MF 14x1 1.00 14.00 10.50 50.00 6HX 70.00 21.00 3 13.00 JIS-B-4436 C = 2-3xTP T100-PM105JB-M14X125 ● MF 14x1.25 1.25 14.00 10.50 50.00 6HX 88.00 21.00 3 12.80 JIS-B-4436 C = 2-3xTP T100-PM105JB-M14X150 ● MF 14x1.5 1.50 14.00 10.50 50.00 6HX 88.00 21.00 3 12.70 JIS-B-4436 C = 2-3xTP T100-PM107JB-M14X100 ● MF 14x1 1.00 14.00 10.50 50.00 6HX 70.00 21.00 3 13.00 JIS-B-4436 E = 1.5-2xTP T100-PM107JB-M14X125 ● MF 14x1.25 1.25 14.00 10.50 50.00 6HX 88.00 21.00 3 12.70 JIS-B-4436 E = 1.5-2xTP T100-PM107JB-M14X150 ● MF 14x1.5 1.50 14.00 10.50 50.00 6HX 88.00 21.00 3 14.70 JIS-B-4436 E = 1.5-2xTP T100-PM105JB-M16X150 ● MF 16x1.5 1.50 16.00 12.50 50.00 6HX 95.00 21.00 3 14.70 JIS-B-4436 C = 2-3xTP T100-PM107JB-M16X150 ● MF 16x1.5 1.50 16.00 12.50 50.00 6HX 95.00 21.00 3 16.60 JIS-B-4436 E = 1.5-2xTP ● = First choice ○ = Good choice 449
