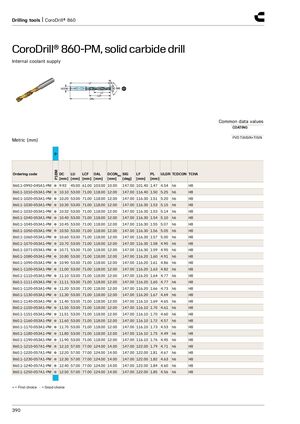

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill​​ Internal coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0992-045A1-PM ● 9.92 45.00 61.00 103.00 10.00 147.00 101.40 1.47 4.54 h6 H8 860.1-1010-053A1-PM ● 10.10 53.00 71.00 118.00 12.00 147.00 116.40 1.50 5.25 h6 H8 860.1-1020-053A1-PM ● 10.20 53.00 71.00 118.00 12.00 147.00 116.30 1.51 5.20 h6 H8 860.1-1030-053A1-PM ● 10.30 53.00 71.00 118.00 12.00 147.00 116.30 1.53 5.15 h6 H8 860.1-1032-053A1-PM ● 10.32 53.00 71.00 118.00 12.00 147.00 116.30 1.53 5.14 h6 H8 860.1-1040-053A1-PM ● 10.40 53.00 71.00 118.00 12.00 147.00 116.30 1.54 5.10 h6 H8 860.1-1045-053A1-PM ● 10.45 53.00 71.00 118.00 12.00 147.00 116.30 1.55 5.07 h6 H8 860.1-1050-053A1-PM ● 10.50 53.00 71.00 118.00 12.00 147.00 116.30 1.56 5.05 h6 H8 860.1-1060-053A1-PM ● 10.60 53.00 71.00 118.00 12.00 147.00 116.30 1.57 5.00 h6 H8 860.1-1070-053A1-PM ● 10.70 53.00 71.00 118.00 12.00 147.00 116.30 1.58 4.95 h6 H8 860.1-1071-053A1-PM ● 10.71 53.00 71.00 118.00 12.00 147.00 116.30 1.59 4.95 h6 H8 860.1-1080-053A1-PM ● 10.80 53.00 71.00 118.00 12.00 147.00 116.20 1.60 4.91 h6 H8 860.1-1090-053A1-PM ● 10.90 53.00 71.00 118.00 12.00 147.00 116.20 1.61 4.86 h6 H8 860.1-1100-053A1-PM ● 11.00 53.00 71.00 118.00 12.00 147.00 116.20 1.63 4.82 h6 H8 860.1-1110-053A1-PM ● 11.10 53.00 71.00 118.00 12.00 147.00 116.20 1.64 4.77 h6 H8 860.1-1111-053A1-PM ● 11.11 53.00 71.00 118.00 12.00 147.00 116.20 1.65 4.77 h6 H8 860.1-1120-053A1-PM ● 11.20 53.00 71.00 118.00 12.00 147.00 116.20 1.66 4.73 h6 H8 860.1-1130-053A1-PM ● 11.30 53.00 71.00 118.00 12.00 147.00 116.20 1.67 4.69 h6 H8 860.1-1140-053A1-PM ● 11.40 53.00 71.00 118.00 12.00 147.00 116.10 1.69 4.65 h6 H8 860.1-1150-053A1-PM ● 11.50 53.00 71.00 118.00 12.00 147.00 116.10 1.70 4.61 h6 H8 860.1-1151-053A1-PM ● 11.51 53.00 71.00 118.00 12.00 147.00 116.10 1.70 4.60 h6 H8 860.1-1160-053A1-PM ● 11.60 53.00 71.00 118.00 12.00 147.00 116.10 1.72 4.57 h6 H8 860.1-1170-053A1-PM ● 11.70 53.00 71.00 118.00 12.00 147.00 116.10 1.73 4.53 h6 H8 860.1-1180-053A1-PM ● 11.80 53.00 71.00 118.00 12.00 147.00 116.10 1.75 4.49 h6 H8 860.1-1190-053A1-PM ● 11.90 53.00 71.00 118.00 12.00 147.00 116.10 1.76 4.45 h6 H8 860.1-1210-057A1-PM ● 12.10 57.00 77.00 124.00 14.00 147.00 122.00 1.79 4.71 h6 H8 860.1-1220-057A1-PM ● 12.20 57.00 77.00 124.00 14.00 147.00 122.00 1.81 4.67 h6 H8 860.1-1230-057A1-PM ● 12.30 57.00 77.00 124.00 14.00 147.00 122.00 1.82 4.63 h6 H8 860.1-1240-057A1-PM ● 12.40 57.00 77.00 124.00 14.00 147.00 122.00 1.84 4.60 h6 H8 860.1-1250-057A1-PM ● 12.50 57.00 77.00 124.00 14.00 147.00 122.00 1.85 4.56 h6 H8 ● = First choice ○ = Good choice 390
