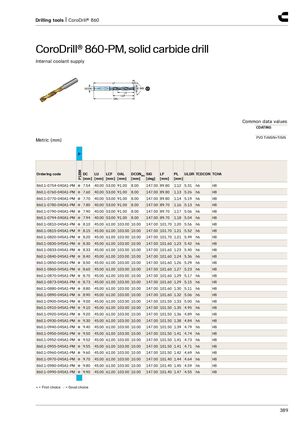

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill​​ Internal coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0754-040A1-PM ● 7.54 40.00 53.00 91.00 8.00 147.00 89.80 1.12 5.31 h6 H8 860.1-0760-040A1-PM ● 7.60 40.00 53.00 91.00 8.00 147.00 89.80 1.13 5.26 h6 H8 860.1-0770-040A1-PM ● 7.70 40.00 53.00 91.00 8.00 147.00 89.80 1.14 5.19 h6 H8 860.1-0780-040A1-PM ● 7.80 40.00 53.00 91.00 8.00 147.00 89.70 1.16 5.13 h6 H8 860.1-0790-040A1-PM ● 7.90 40.00 53.00 91.00 8.00 147.00 89.70 1.17 5.06 h6 H8 860.1-0794-040A1-PM ● 7.94 40.00 53.00 91.00 8.00 147.00 89.70 1.18 5.04 h6 H8 860.1-0810-045A1-PM ● 8.10 45.00 61.00 103.00 10.00 147.00 101.70 1.20 5.56 h6 H8 860.1-0815-045A1-PM ● 8.15 45.00 61.00 103.00 10.00 147.00 101.70 1.21 5.52 h6 H8 860.1-0820-045A1-PM ● 8.20 45.00 61.00 103.00 10.00 147.00 101.70 1.21 5.49 h6 H8 860.1-0830-045A1-PM ● 8.30 45.00 61.00 103.00 10.00 147.00 101.60 1.23 5.42 h6 H8 860.1-0833-045A1-PM ● 8.33 45.00 61.00 103.00 10.00 147.00 101.60 1.23 5.40 h6 H8 860.1-0840-045A1-PM ● 8.40 45.00 61.00 103.00 10.00 147.00 101.60 1.24 5.36 h6 H8 860.1-0850-045A1-PM ● 8.50 45.00 61.00 103.00 10.00 147.00 101.60 1.26 5.29 h6 H8 860.1-0860-045A1-PM ● 8.60 45.00 61.00 103.00 10.00 147.00 101.60 1.27 5.23 h6 H8 860.1-0870-045A1-PM ● 8.70 45.00 61.00 103.00 10.00 147.00 101.60 1.29 5.17 h6 H8 860.1-0873-045A1-PM ● 8.73 45.00 61.00 103.00 10.00 147.00 101.60 1.29 5.15 h6 H8 860.1-0880-045A1-PM ● 8.80 45.00 61.00 103.00 10.00 147.00 101.60 1.30 5.11 h6 H8 860.1-0890-045A1-PM ● 8.90 45.00 61.00 103.00 10.00 147.00 101.60 1.32 5.06 h6 H8 860.1-0900-045A1-PM ● 9.00 45.00 61.00 103.00 10.00 147.00 101.50 1.33 5.00 h6 H8 860.1-0910-045A1-PM ● 9.10 45.00 61.00 103.00 10.00 147.00 101.50 1.35 4.95 h6 H8 860.1-0920-045A1-PM ● 9.20 45.00 61.00 103.00 10.00 147.00 101.50 1.36 4.89 h6 H8 860.1-0930-045A1-PM ● 9.30 45.00 61.00 103.00 10.00 147.00 101.50 1.38 4.84 h6 H8 860.1-0940-045A1-PM ● 9.40 45.00 61.00 103.00 10.00 147.00 101.50 1.39 4.79 h6 H8 860.1-0950-045A1-PM ● 9.50 45.00 61.00 103.00 10.00 147.00 101.50 1.41 4.74 h6 H8 860.1-0952-045A1-PM ● 9.52 45.00 61.00 103.00 10.00 147.00 101.50 1.41 4.73 h6 H8 860.1-0955-045A1-PM ● 9.55 45.00 61.00 103.00 10.00 147.00 101.50 1.41 4.71 h6 H8 860.1-0960-045A1-PM ● 9.60 45.00 61.00 103.00 10.00 147.00 101.50 1.42 4.69 h6 H8 860.1-0970-045A1-PM ● 9.70 45.00 61.00 103.00 10.00 147.00 101.40 1.44 4.64 h6 H8 860.1-0980-045A1-PM ● 9.80 45.00 61.00 103.00 10.00 147.00 101.40 1.45 4.59 h6 H8 860.1-0990-045A1-PM ● 9.90 45.00 61.00 103.00 10.00 147.00 101.40 1.47 4.55 h6 H8 ● = First choice ○ = Good choice 389
