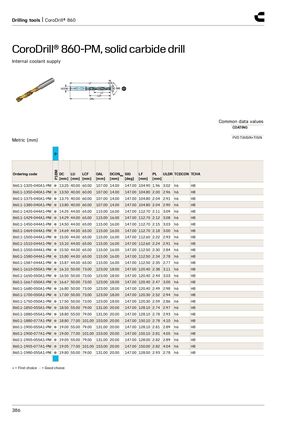

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill​​ Internal coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1325-040A1-PM ● 13.25 40.00 60.00 107.00 14.00 147.00 104.90 1.96 3.02 h6 H8 860.1-1350-040A1-PM ● 13.50 40.00 60.00 107.00 14.00 147.00 104.80 2.00 2.96 h6 H8 860.1-1375-040A1-PM ● 13.75 40.00 60.00 107.00 14.00 147.00 104.80 2.04 2.91 h6 H8 860.1-1380-040A1-PM ● 13.80 40.00 60.00 107.00 14.00 147.00 104.80 2.04 2.90 h6 H8 860.1-1425-044A1-PM ● 14.25 44.00 65.00 115.00 16.00 147.00 112.70 2.11 3.09 h6 H8 860.1-1429-044A1-PM ● 14.29 44.00 65.00 115.00 16.00 147.00 112.70 2.12 3.08 h6 H8 860.1-1450-044A1-PM ● 14.50 44.00 65.00 115.00 16.00 147.00 112.70 2.15 3.03 h6 H8 860.1-1469-044A1-PM ● 14.69 44.00 65.00 115.00 16.00 147.00 112.70 2.18 3.00 h6 H8 860.1-1500-044A1-PM ● 15.00 44.00 65.00 115.00 16.00 147.00 112.60 2.22 2.93 h6 H8 860.1-1510-044A1-PM ● 15.10 44.00 65.00 115.00 16.00 147.00 112.60 2.24 2.91 h6 H8 860.1-1550-044A1-PM ● 15.50 44.00 65.00 115.00 16.00 147.00 112.50 2.30 2.84 h6 H8 860.1-1580-044A1-PM ● 15.80 44.00 65.00 115.00 16.00 147.00 112.50 2.34 2.78 h6 H8 860.1-1587-044A1-PM ● 15.87 44.00 65.00 115.00 16.00 147.00 112.50 2.35 2.77 h6 H8 860.1-1610-050A1-PM ● 16.10 50.00 73.00 123.00 18.00 147.00 120.40 2.38 3.11 h6 H8 860.1-1650-050A1-PM ● 16.50 50.00 73.00 123.00 18.00 147.00 120.40 2.44 3.03 h6 H8 860.1-1667-050A1-PM ● 16.67 50.00 73.00 123.00 18.00 147.00 120.40 2.47 3.00 h6 H8 860.1-1680-050A1-PM ● 16.80 50.00 73.00 123.00 18.00 147.00 120.40 2.49 2.98 h6 H8 860.1-1700-050A1-PM ● 17.00 50.00 73.00 123.00 18.00 147.00 120.30 2.52 2.94 h6 H8 860.1-1750-050A1-PM ● 17.50 50.00 73.00 123.00 18.00 147.00 120.30 2.59 2.86 h6 H8 860.1-1850-055A1-PM ● 18.50 55.00 79.00 131.00 20.00 147.00 128.10 2.74 2.97 h6 H8 860.1-1880-055A1-PM ● 18.80 55.00 79.00 131.00 20.00 147.00 128.10 2.78 2.93 h6 H8 860.1-1880-077A1-PM ● 18.80 77.00 101.00 153.00 20.00 147.00 150.10 2.78 4.10 h6 H8 860.1-1900-055A1-PM ● 19.00 55.00 79.00 131.00 20.00 147.00 128.10 2.81 2.89 h6 H8 860.1-1900-077A1-PM ● 19.00 77.00 101.00 153.00 20.00 147.00 150.10 2.81 4.05 h6 H8 860.1-1905-055A1-PM ● 19.05 55.00 79.00 131.00 20.00 147.00 128.00 2.82 2.89 h6 H8 860.1-1905-077A1-PM ● 19.05 77.00 101.00 153.00 20.00 147.00 150.00 2.82 4.04 h6 H8 860.1-1980-055A1-PM ● 19.80 55.00 79.00 131.00 20.00 147.00 128.00 2.93 2.78 h6 H8 ● = First choice ○ = Good choice 386
