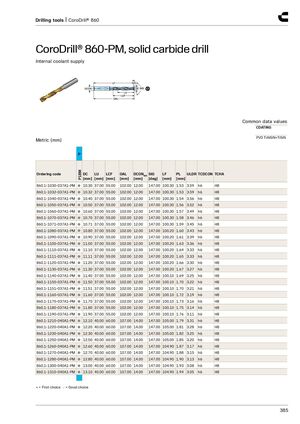

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill Internal coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1030-037A1-PM ● 10.30 37.00 55.00 102.00 12.00 147.00 100.30 1.53 3.59 h6 H8 860.1-1032-037A1-PM ● 10.32 37.00 55.00 102.00 12.00 147.00 100.30 1.53 3.59 h6 H8 860.1-1040-037A1-PM ● 10.40 37.00 55.00 102.00 12.00 147.00 100.30 1.54 3.56 h6 H8 860.1-1050-037A1-PM ● 10.50 37.00 55.00 102.00 12.00 147.00 100.30 1.56 3.52 h6 H8 860.1-1060-037A1-PM ● 10.60 37.00 55.00 102.00 12.00 147.00 100.30 1.57 3.49 h6 H8 860.1-1070-037A1-PM ● 10.70 37.00 55.00 102.00 12.00 147.00 100.30 1.58 3.46 h6 H8 860.1-1071-037A1-PM ● 10.71 37.00 55.00 102.00 12.00 147.00 100.30 1.59 3.45 h6 H8 860.1-1080-037A1-PM ● 10.80 37.00 55.00 102.00 12.00 147.00 100.20 1.60 3.43 h6 H8 860.1-1090-037A1-PM ● 10.90 37.00 55.00 102.00 12.00 147.00 100.20 1.61 3.39 h6 H8 860.1-1100-037A1-PM ● 11.00 37.00 55.00 102.00 12.00 147.00 100.20 1.63 3.36 h6 H8 860.1-1110-037A1-PM ● 11.10 37.00 55.00 102.00 12.00 147.00 100.20 1.64 3.33 h6 H8 860.1-1111-037A1-PM ● 11.11 37.00 55.00 102.00 12.00 147.00 100.20 1.65 3.33 h6 H8 860.1-1120-037A1-PM ● 11.20 37.00 55.00 102.00 12.00 147.00 100.20 1.66 3.30 h6 H8 860.1-1130-037A1-PM ● 11.30 37.00 55.00 102.00 12.00 147.00 100.20 1.67 3.27 h6 H8 860.1-1140-037A1-PM ● 11.40 37.00 55.00 102.00 12.00 147.00 100.10 1.69 3.25 h6 H8 860.1-1150-037A1-PM ● 11.50 37.00 55.00 102.00 12.00 147.00 100.10 1.70 3.22 h6 H8 860.1-1151-037A1-PM ● 11.51 37.00 55.00 102.00 12.00 147.00 100.10 1.70 3.21 h6 H8 860.1-1160-037A1-PM ● 11.60 37.00 55.00 102.00 12.00 147.00 100.10 1.72 3.19 h6 H8 860.1-1170-037A1-PM ● 11.70 37.00 55.00 102.00 12.00 147.00 100.10 1.73 3.16 h6 H8 860.1-1180-037A1-PM ● 11.80 37.00 55.00 102.00 12.00 147.00 100.10 1.75 3.14 h6 H8 860.1-1190-037A1-PM ● 11.90 37.00 55.00 102.00 12.00 147.00 100.10 1.76 3.11 h6 H8 860.1-1210-040A1-PM ● 12.10 40.00 60.00 107.00 14.00 147.00 105.00 1.79 3.31 h6 H8 860.1-1220-040A1-PM ● 12.20 40.00 60.00 107.00 14.00 147.00 105.00 1.81 3.28 h6 H8 860.1-1230-040A1-PM ● 12.30 40.00 60.00 107.00 14.00 147.00 105.00 1.82 3.25 h6 H8 860.1-1250-040A1-PM ● 12.50 40.00 60.00 107.00 14.00 147.00 105.00 1.85 3.20 h6 H8 860.1-1260-040A1-PM ● 12.60 40.00 60.00 107.00 14.00 147.00 104.90 1.87 3.17 h6 H8 860.1-1270-040A1-PM ● 12.70 40.00 60.00 107.00 14.00 147.00 104.90 1.88 3.15 h6 H8 860.1-1280-040A1-PM ● 12.80 40.00 60.00 107.00 14.00 147.00 104.90 1.90 3.13 h6 H8 860.1-1300-040A1-PM ● 13.00 40.00 60.00 107.00 14.00 147.00 104.90 1.93 3.08 h6 H8 860.1-1310-040A1-PM ● 13.10 40.00 60.00 107.00 14.00 147.00 104.90 1.94 3.05 h6 H8 ● = First choice ○ = Good choice 385
