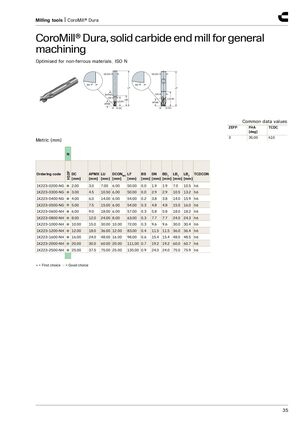

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for non-ferrous materials, ISO N DCON DCON BS BS LF LF BHTA2 DN DN LU/LB1 LB2 LU/LB1 APMX APMX DC DC Common data values ZEFP FHA TCDC [deg] 3 35.00 h10 Metric (mm) N H10F Ordering code DC APMX LU DCONMS LF BS DN BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1K223-0200-NG ● 2.00 3.0 7.00 6.00 50.00 0.0 1.9 1.9 7.0 10.5 h6 1K223-0300-NG ● 3.00 4.5 10.50 6.00 50.00 0.0 2.9 2.9 10.5 13.2 h6 1K223-0400-NG ● 4.00 6.0 14.00 6.00 54.00 0.2 3.8 3.8 14.0 15.9 h6 1K223-0500-NG ● 5.00 7.5 15.00 6.00 54.00 0.3 4.8 4.8 15.0 16.0 h6 1K223-0600-NH ● 6.00 9.0 18.00 6.00 57.00 0.3 5.8 5.8 18.0 18.2 h6 1K223-0800-NH ● 8.00 12.0 24.00 8.00 63.00 0.3 7.7 7.7 24.0 24.3 h6 1K223-1000-NH ● 10.00 15.0 30.00 10.00 72.00 0.3 9.6 9.6 30.0 30.4 h6 1K223-1200-NH ● 12.00 18.0 36.00 12.00 83.00 0.4 11.5 11.5 36.0 36.4 h6 1K223-1600-NH ● 16.00 24.0 48.00 16.00 98.00 0.6 15.4 15.4 48.0 48.5 h6 1K223-2000-NH ● 20.00 30.0 60.00 20.00 111.00 0.7 19.2 19.2 60.0 60.7 h6 1K223-2500-NH ● 25.00 37.5 75.00 25.00 135.00 0.9 24.0 24.0 75.0 75.9 h6 ● = First choice ○ = Good choice 35
