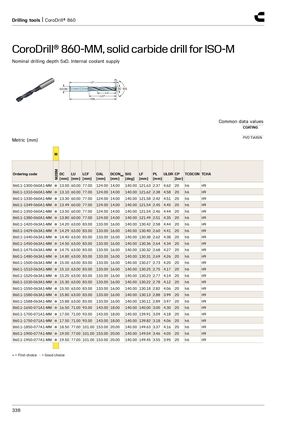

Drilling tools | CoroDrill® 860 CoroDrill® 860-MM, solid carbide drill for ISO-M​​ Nominal drilling depth 5xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) M M2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 860.1-1300-060A1-MM ● 13.00 60.00 77.00 124.00 14.00 140.00 121.63 2.37 4.62 20 h6 H9 860.1-1310-060A1-MM ● 13.10 60.00 77.00 124.00 14.00 140.00 121.62 2.38 4.58 20 h6 H9 860.1-1330-060A1-MM ● 13.30 60.00 77.00 124.00 14.00 140.00 121.58 2.42 4.51 20 h6 H9 860.1-1349-060A1-MM ● 13.49 60.00 77.00 124.00 14.00 140.00 121.54 2.45 4.45 20 h6 H9 860.1-1350-060A1-MM ● 13.50 60.00 77.00 124.00 14.00 140.00 121.54 2.46 4.44 20 h6 H9 860.1-1380-060A1-MM ● 13.80 60.00 77.00 124.00 14.00 140.00 121.49 2.51 4.35 20 h6 H9 860.1-1420-063A1-MM ● 14.20 63.00 83.00 133.00 16.00 140.00 130.42 2.58 4.44 20 h6 H9 860.1-1429-063A1-MM ● 14.29 63.00 83.00 133.00 16.00 140.00 130.40 2.60 4.41 20 h6 H9 860.1-1440-063A1-MM ● 14.40 63.00 83.00 133.00 16.00 140.00 130.38 2.62 4.38 20 h6 H9 860.1-1450-063A1-MM ● 14.50 63.00 83.00 133.00 16.00 140.00 130.36 2.64 4.34 20 h6 H9 860.1-1475-063A1-MM ● 14.75 63.00 83.00 133.00 16.00 140.00 130.32 2.68 4.27 20 h6 H9 860.1-1480-063A1-MM ● 14.80 63.00 83.00 133.00 16.00 140.00 130.31 2.69 4.26 20 h6 H9 860.1-1500-063A1-MM ● 15.00 63.00 83.00 133.00 16.00 140.00 130.27 2.73 4.20 20 h6 H9 860.1-1510-063A1-MM ● 15.10 63.00 83.00 133.00 16.00 140.00 130.25 2.75 4.17 20 h6 H9 860.1-1520-063A1-MM ● 15.20 63.00 83.00 133.00 16.00 140.00 130.23 2.77 4.14 20 h6 H9 860.1-1530-063A1-MM ● 15.30 63.00 83.00 133.00 16.00 140.00 130.22 2.78 4.12 20 h6 H9 860.1-1550-063A1-MM ● 15.50 63.00 83.00 133.00 16.00 140.00 130.18 2.82 4.06 20 h6 H9 860.1-1580-063A1-MM ● 15.80 63.00 83.00 133.00 16.00 140.00 130.13 2.88 3.99 20 h6 H9 860.1-1588-063A1-MM ● 15.88 63.00 83.00 133.00 16.00 140.00 130.11 2.89 3.97 20 h6 H9 860.1-1650-071A1-MM ● 16.50 71.00 93.00 143.00 18.00 140.00 140.00 3.00 4.30 20 h6 H9 860.1-1700-071A1-MM ● 17.00 71.00 93.00 143.00 18.00 140.00 139.91 3.09 4.18 20 h6 H9 860.1-1750-071A1-MM ● 17.50 71.00 93.00 143.00 18.00 140.00 139.82 3.18 4.06 20 h6 H9 860.1-1850-077A1-MM ● 18.50 77.00 101.00 153.00 20.00 140.00 149.63 3.37 4.16 20 h6 H9 860.1-1900-077A1-MM ● 19.00 77.00 101.00 153.00 20.00 140.00 149.54 3.46 4.05 20 h6 H9 860.1-1950-077A1-MM ● 19.50 77.00 101.00 153.00 20.00 140.00 149.45 3.55 3.95 20 h6 H9 ● = First choice ○ = Good choice 338
