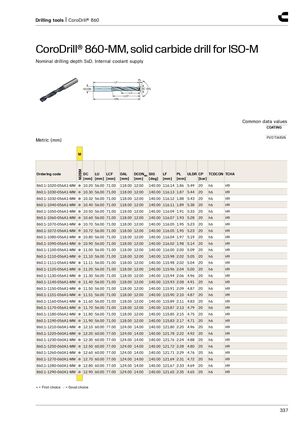

Drilling tools | CoroDrill® 860 CoroDrill® 860-MM, solid carbide drill for ISO-M Nominal drilling depth 5xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) M M2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 860.1-1020-056A1-MM ● 10.20 56.00 71.00 118.00 12.00 140.00 116.14 1.86 5.49 20 h6 H9 860.1-1030-056A1-MM ● 10.30 56.00 71.00 118.00 12.00 140.00 116.13 1.87 5.44 20 h6 H9 860.1-1032-056A1-MM ● 10.32 56.00 71.00 118.00 12.00 140.00 116.12 1.88 5.43 20 h6 H9 860.1-1040-056A1-MM ● 10.40 56.00 71.00 118.00 12.00 140.00 116.11 1.89 5.38 20 h6 H9 860.1-1050-056A1-MM ● 10.50 56.00 71.00 118.00 12.00 140.00 116.09 1.91 5.33 20 h6 H9 860.1-1060-056A1-MM ● 10.60 56.00 71.00 118.00 12.00 140.00 116.07 1.93 5.28 20 h6 H9 860.1-1070-056A1-MM ● 10.70 56.00 71.00 118.00 12.00 140.00 116.05 1.95 5.23 20 h6 H9 860.1-1072-056A1-MM ● 10.72 56.00 71.00 118.00 12.00 140.00 116.05 1.95 5.23 20 h6 H9 860.1-1080-056A1-MM ● 10.80 56.00 71.00 118.00 12.00 140.00 116.04 1.97 5.19 20 h6 H9 860.1-1090-056A1-MM ● 10.90 56.00 71.00 118.00 12.00 140.00 116.02 1.98 5.14 20 h6 H9 860.1-1100-056A1-MM ● 11.00 56.00 71.00 118.00 12.00 140.00 116.00 2.00 5.09 20 h6 H9 860.1-1110-056A1-MM ● 11.10 56.00 71.00 118.00 12.00 140.00 115.98 2.02 5.05 20 h6 H9 860.1-1111-056A1-MM ● 11.11 56.00 71.00 118.00 12.00 140.00 115.98 2.02 5.04 20 h6 H9 860.1-1120-056A1-MM ● 11.20 56.00 71.00 118.00 12.00 140.00 115.96 2.04 5.00 20 h6 H9 860.1-1130-056A1-MM ● 11.30 56.00 71.00 118.00 12.00 140.00 115.94 2.06 4.96 20 h6 H9 860.1-1140-056A1-MM ● 11.40 56.00 71.00 118.00 12.00 140.00 115.93 2.08 4.91 20 h6 H9 860.1-1150-056A1-MM ● 11.50 56.00 71.00 118.00 12.00 140.00 115.91 2.09 4.87 20 h6 H9 860.1-1151-056A1-MM ● 11.51 56.00 71.00 118.00 12.00 140.00 115.90 2.10 4.87 20 h6 H9 860.1-1160-056A1-MM ● 11.60 56.00 71.00 118.00 12.00 140.00 115.89 2.11 4.83 20 h6 H9 860.1-1170-056A1-MM ● 11.70 56.00 71.00 118.00 12.00 140.00 115.87 2.13 4.79 20 h6 H9 860.1-1180-056A1-MM ● 11.80 56.00 71.00 118.00 12.00 140.00 115.85 2.15 4.75 20 h6 H9 860.1-1190-056A1-MM ● 11.90 56.00 71.00 118.00 12.00 140.00 115.83 2.17 4.71 20 h6 H9 860.1-1210-060A1-MM ● 12.10 60.00 77.00 124.00 14.00 140.00 121.80 2.20 4.96 20 h6 H9 860.1-1220-060A1-MM ● 12.20 60.00 77.00 124.00 14.00 140.00 121.78 2.22 4.92 20 h6 H9 860.1-1230-060A1-MM ● 12.30 60.00 77.00 124.00 14.00 140.00 121.76 2.24 4.88 20 h6 H9 860.1-1250-060A1-MM ● 12.50 60.00 77.00 124.00 14.00 140.00 121.72 2.28 4.80 20 h6 H9 860.1-1260-060A1-MM ● 12.60 60.00 77.00 124.00 14.00 140.00 121.71 2.29 4.76 20 h6 H9 860.1-1270-060A1-MM ● 12.70 60.00 77.00 124.00 14.00 140.00 121.69 2.31 4.72 20 h6 H9 860.1-1280-060A1-MM ● 12.80 60.00 77.00 124.00 14.00 140.00 121.67 2.33 4.69 20 h6 H9 860.1-1290-060A1-MM ● 12.90 60.00 77.00 124.00 14.00 140.00 121.65 2.35 4.65 20 h6 H9 ● = First choice ○ = Good choice 337
