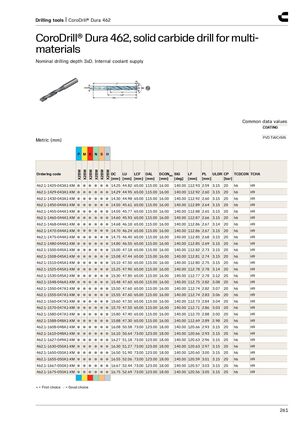

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide drill for multi- materials​​ Nominal drilling depth 3xD. Internal coolant supply Common data values COATING PVD TiAlCrSiN Metric (mm) P M K N S H X2BM X2BM X2BM X2BM X2BM X2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 462.1-1425-043A1-XM ● ● ● ● ● ● 14.25 44.82 65.00 115.00 16.00 140.00 112.93 2.59 3.15 20 h6 H9 462.1-1429-043A1-XM ● ● ● ● ● ● 14.29 44.95 65.00 115.00 16.00 140.00 112.92 2.60 3.15 20 h6 H9 462.1-1430-043A1-XM ● ● ● ● ● ● 14.30 44.98 65.00 115.00 16.00 140.00 112.92 2.60 3.15 20 h6 H9 462.1-1450-044A1-XM ● ● ● ● ● ● 14.50 45.61 65.00 115.00 16.00 140.00 112.89 2.64 3.15 20 h6 H9 462.1-1455-044A1-XM ● ● ● ● ● ● 14.55 45.77 65.00 115.00 16.00 140.00 112.88 2.65 3.15 20 h6 H9 462.1-1460-044A1-XM ● ● ● ● ● ● 14.60 45.93 65.00 115.00 16.00 140.00 112.87 2.66 3.15 20 h6 H9 462.1-1468-044A1-XM ● ● ● ● ● ● 14.68 46.18 65.00 115.00 16.00 140.00 112.86 2.67 3.14 20 h6 H9 462.1-1470-044A1-XM ● ● ● ● ● ● 14.70 46.24 65.00 115.00 16.00 140.00 112.86 2.67 3.15 20 h6 H9 462.1-1475-044A1-XM ● ● ● ● ● ● 14.75 46.40 65.00 115.00 16.00 140.00 112.85 2.68 3.15 20 h6 H9 462.1-1480-044A1-XM ● ● ● ● ● ● 14.80 46.55 65.00 115.00 16.00 140.00 112.85 2.69 3.15 20 h6 H9 462.1-1500-045A1-XM ● ● ● ● ● ● 15.00 47.18 65.00 115.00 16.00 140.00 112.82 2.73 3.15 20 h6 H9 462.1-1508-045A1-XM ● ● ● ● ● ● 15.08 47.44 65.00 115.00 16.00 140.00 112.81 2.74 3.15 20 h6 H9 462.1-1510-045A1-XM ● ● ● ● ● ● 15.10 47.50 65.00 115.00 16.00 140.00 112.80 2.75 3.15 20 h6 H9 462.1-1525-045A1-XM ● ● ● ● ● ● 15.25 47.90 65.00 115.00 16.00 140.00 112.78 2.78 3.14 20 h6 H9 462.1-1530-045A1-XM ● ● ● ● ● ● 15.30 47.80 65.00 115.00 16.00 140.00 112.77 2.78 3.12 20 h6 H9 462.1-1548-046A1-XM ● ● ● ● ● ● 15.48 47.60 65.00 115.00 16.00 140.00 112.75 2.82 3.08 20 h6 H9 462.1-1550-047A1-XM ● ● ● ● ● ● 15.50 47.60 65.00 115.00 16.00 140.00 112.74 2.82 3.07 20 h6 H9 462.1-1555-047A1-XM ● ● ● ● ● ● 15.55 47.60 65.00 115.00 16.00 140.00 112.74 2.83 3.06 20 h6 H9 462.1-1560-047A1-XM ● ● ● ● ● ● 15.60 47.50 65.00 115.00 16.00 140.00 112.73 2.84 3.04 20 h6 H9 462.1-1570-047A1-XM ● ● ● ● ● ● 15.70 47.50 65.00 115.00 16.00 140.00 112.71 2.86 3.03 20 h6 H9 462.1-1580-047A1-XM ● ● ● ● ● ● 15.80 47.40 65.00 115.00 16.00 140.00 112.70 2.88 3.00 20 h6 H9 462.1-1588-048A1-XM ● ● ● ● ● ● 15.88 47.30 65.00 115.00 16.00 140.00 112.69 2.89 2.98 20 h6 H9 462.1-1608-048A1-XM ● ● ● ● ● ● 16.08 50.58 73.00 123.00 18.00 140.00 120.66 2.93 3.15 20 h6 H9 462.1-1610-048A1-XM ● ● ● ● ● ● 16.10 50.64 73.00 123.00 18.00 140.00 120.66 2.93 3.15 20 h6 H9 462.1-1627-049A1-XM ● ● ● ● ● ● 16.27 51.18 73.00 123.00 18.00 140.00 120.63 2.96 3.15 20 h6 H9 462.1-1630-050A1-XM ● ● ● ● ● ● 16.30 51.27 73.00 123.00 18.00 140.00 120.63 2.97 3.15 20 h6 H9 462.1-1650-050A1-XM ● ● ● ● ● ● 16.50 51.90 73.00 123.00 18.00 140.00 120.60 3.00 3.15 20 h6 H9 462.1-1655-050A1-XM ● ● ● ● ● ● 16.55 52.06 73.00 123.00 18.00 140.00 120.59 3.01 3.15 20 h6 H9 462.1-1667-050A1-XM ● ● ● ● ● ● 16.67 52.44 73.00 123.00 18.00 140.00 120.57 3.03 3.15 20 h6 H9 462.1-1675-050A1-XM ● ● ● ● ● ● 16.75 52.69 73.00 123.00 18.00 140.00 120.56 3.05 3.15 20 h6 H9 ● = First choice ○ = Good choice 261
