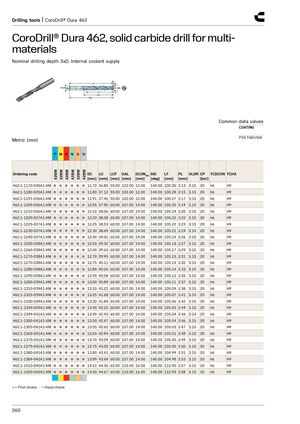

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide drill for multi- materials​​ Nominal drilling depth 3xD. Internal coolant supply Common data values COATING PVD TiAlCrSiN Metric (mm) P M K N S H X2BM X2BM X2BM X2BM X2BM X2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 462.1-1170-035A1-XM ● ● ● ● ● ● 11.70 36.80 55.00 102.00 12.00 140.00 100.30 2.13 3.15 20 h6 H9 462.1-1180-035A1-XM ● ● ● ● ● ● 11.80 37.12 55.00 102.00 12.00 140.00 100.28 2.15 3.15 20 h6 H9 462.1-1191-036A1-XM ● ● ● ● ● ● 11.91 37.46 55.00 102.00 12.00 140.00 100.27 2.17 3.15 20 h6 H9 462.1-1205-036A1-XM ● ● ● ● ● ● 12.05 37.90 60.00 107.00 14.00 140.00 105.25 2.19 3.15 20 h6 H9 462.1-1210-036A1-XM ● ● ● ● ● ● 12.10 38.06 60.00 107.00 14.00 140.00 105.24 2.20 3.15 20 h6 H9 462.1-1220-037A1-XM ● ● ● ● ● ● 12.20 38.38 60.00 107.00 14.00 140.00 105.22 2.22 3.15 20 h6 H9 462.1-1225-037A1-XM ● ● ● ● ● ● 12.25 38.53 60.00 107.00 14.00 140.00 105.22 2.23 3.15 20 h6 H9 462.1-1230-037A1-XM ● ● ● ● ● ● 12.30 38.69 60.00 107.00 14.00 140.00 105.21 2.24 3.14 20 h6 H9 462.1-1240-037A1-XM ● ● ● ● ● ● 12.40 39.01 60.00 107.00 14.00 140.00 105.19 2.26 3.15 20 h6 H9 462.1-1250-038A1-XM ● ● ● ● ● ● 12.50 39.32 60.00 107.00 14.00 140.00 105.18 2.27 3.15 20 h6 H9 462.1-1260-038A1-XM ● ● ● ● ● ● 12.60 39.63 60.00 107.00 14.00 140.00 105.17 2.29 3.15 20 h6 H9 462.1-1270-038A1-XM ● ● ● ● ● ● 12.70 39.95 60.00 107.00 14.00 140.00 105.15 2.31 3.15 20 h6 H9 462.1-1275-038A1-XM ● ● ● ● ● ● 12.75 40.11 60.00 107.00 14.00 140.00 105.14 2.32 3.15 20 h6 H9 462.1-1280-038A1-XM ● ● ● ● ● ● 12.80 40.26 60.00 107.00 14.00 140.00 105.14 2.33 3.15 20 h6 H9 462.1-1290-038A1-XM ● ● ● ● ● ● 12.90 40.58 60.00 107.00 14.00 140.00 105.12 2.35 3.15 20 h6 H9 462.1-1300-039A1-XM ● ● ● ● ● ● 13.00 40.89 60.00 107.00 14.00 140.00 105.11 2.37 3.15 20 h6 H9 462.1-1310-039A1-XM ● ● ● ● ● ● 13.10 41.21 60.00 107.00 14.00 140.00 105.09 2.38 3.15 20 h6 H9 462.1-1325-039A1-XM ● ● ● ● ● ● 13.25 41.68 60.00 107.00 14.00 140.00 105.07 2.41 3.15 20 h6 H9 462.1-1330-039A1-XM ● ● ● ● ● ● 13.30 41.84 60.00 107.00 14.00 140.00 105.06 2.42 3.15 20 h6 H9 462.1-1340-039A1-XM ● ● ● ● ● ● 13.40 42.15 60.00 107.00 14.00 140.00 105.05 2.44 3.15 20 h6 H9 462.1-1349-041A1-XM ● ● ● ● ● ● 13.49 42.43 60.00 107.00 14.00 140.00 105.04 2.46 3.14 20 h6 H9 462.1-1350-041A1-XM ● ● ● ● ● ● 13.50 42.47 60.00 107.00 14.00 140.00 105.04 2.46 3.15 20 h6 H9 462.1-1355-041A1-XM ● ● ● ● ● ● 13.55 42.62 60.00 107.00 14.00 140.00 105.03 2.47 3.15 20 h6 H9 462.1-1365-041A1-XM ● ● ● ● ● ● 13.65 42.94 60.00 107.00 14.00 140.00 105.01 2.48 3.15 20 h6 H9 462.1-1370-041A1-XM ● ● ● ● ● ● 13.70 43.09 60.00 107.00 14.00 140.00 105.00 2.49 3.15 20 h6 H9 462.1-1375-041A1-XM ● ● ● ● ● ● 13.75 43.25 60.00 107.00 14.00 140.00 105.00 2.50 3.15 20 h6 H9 462.1-1380-041A1-XM ● ● ● ● ● ● 13.80 43.41 60.00 107.00 14.00 140.00 104.99 2.51 3.15 20 h6 H9 462.1-1389-042A1-XM ● ● ● ● ● ● 13.89 43.69 60.00 107.00 14.00 140.00 104.98 2.53 3.15 20 h6 H9 462.1-1410-042A1-XM ● ● ● ● ● ● 14.10 44.35 65.00 115.00 16.00 140.00 112.95 2.57 3.15 20 h6 H9 462.1-1420-042A1-XM ● ● ● ● ● ● 14.20 44.67 65.00 115.00 16.00 140.00 112.93 2.58 3.15 20 h6 H9 ● = First choice ○ = Good choice 260
