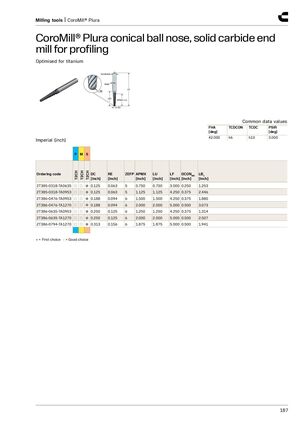

Milling tools | CoroMill® Plura CoroMill® Plura conical ball nose, solid carbide end mill for profiling​​ Optimised for titanium DCON MS PSIR LF RE LB1 APMX / LU DC Common data values FHA TCDCON TCDC PSIR [deg] [deg] 42.000 h6 h10 3.000 Imperial (inch) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS LB 1 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2T385-0318-TA0635 ○ ○ ● 0.125 0.063 5 0.750 0.750 3.000 0.250 1.253 2T385-0318-TA0953 ○ ○ ● 0.125 0.063 5 1.125 1.125 4.250 0.375 2.446 2T386-0476-TA0953 ○ ○ ● 0.188 0.094 6 1.500 1.500 4.250 0.375 1.880 2T386-0476-TA1270 ○ ○ ● 0.188 0.094 6 2.000 2.000 5.000 0.500 3.073 2T386-0635-TA0953 ○ ○ ● 0.250 0.125 6 1.250 1.250 4.250 0.375 1.314 2T386-0635-TA1270 ○ ○ ● 0.250 0.125 6 2.000 2.000 5.000 0.500 2.507 2T386-0794-TA1270 ○ ○ ● 0.313 0.156 6 1.875 1.875 5.000 0.500 1.941 ● = First choice ○ = Good choice 187
