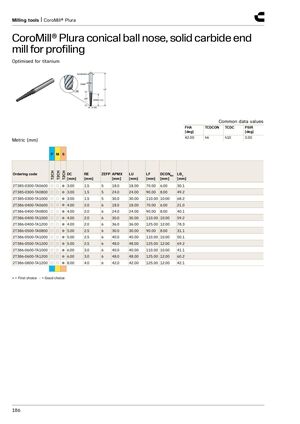

Milling tools | CoroMill® Plura CoroMill® Plura conical ball nose, solid carbide end mill for profiling​​ Optimised for titanium DCON MS PSIR LF RE LB1 APMX / LU DC Common data values FHA TCDCON TCDC PSIR [deg] [deg] 42.00 h6 h10 3.00 Metric (mm) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS LB 1 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2T385-0300-TA0600 ○ ○ ● 3.00 1.5 5 18.0 18.00 70.00 6.00 30.1 2T385-0300-TA0800 ○ ○ ● 3.00 1.5 5 24.0 24.00 90.00 8.00 49.2 2T385-0300-TA1000 ○ ○ ● 3.00 1.5 5 30.0 30.00 110.00 10.00 68.2 2T386-0400-TA0600 ○ ○ ● 4.00 2.0 6 18.0 18.00 70.00 6.00 21.0 2T386-0400-TA0800 ○ ○ ● 4.00 2.0 6 24.0 24.00 90.00 8.00 40.1 2T386-0400-TA1000 ○ ○ ● 4.00 2.0 6 30.0 30.00 110.00 10.00 59.2 2T386-0400-TA1200 ○ ○ ● 4.00 2.0 6 36.0 36.00 125.00 12.00 78.3 2T386-0500-TA0800 ○ ○ ● 5.00 2.5 6 30.0 30.00 90.00 8.00 31.1 2T386-0500-TA1000 ○ ○ ● 5.00 2.5 6 40.0 40.00 110.00 10.00 50.1 2T386-0500-TA1200 ○ ○ ● 5.00 2.5 6 48.0 48.00 125.00 12.00 69.2 2T386-0600-TA1000 ○ ○ ● 6.00 3.0 6 40.0 40.00 110.00 10.00 41.1 2T386-0600-TA1200 ○ ○ ● 6.00 3.0 6 48.0 48.00 125.00 12.00 60.2 2T386-0800-TA1200 ○ ○ ● 8.00 4.0 6 42.0 42.00 125.00 12.00 42.1 ● = First choice ○ = Good choice 186
