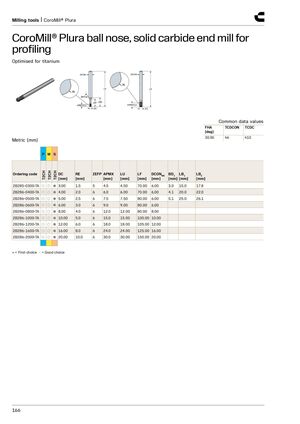

Milling tools | CoroMill® Plura CoroMill® Plura ball nose, solid carbide end mill for profiling​​ Optimised for titanium DCON DCON RE LF LF RE BHTA2 LB1 LB2 APMX/LU APMX/LU DC DC Common data values FHA TCDCON TCDC [deg] 30.00 h6 h10 Metric (mm) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS BD 1 LB 1 _ _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2B285-0300-TA ○ ○ ● 3.00 1.5 5 4.5 4.50 70.00 6.00 3.0 15.0 17.8 2B286-0400-TA ○ ○ ● 4.00 2.0 6 6.0 6.00 70.00 6.00 4.1 20.0 22.0 2B286-0500-TA ○ ○ ● 5.00 2.5 6 7.5 7.50 80.00 6.00 5.1 25.0 26.1 2B286-0600-TA ○ ○ ● 6.00 3.0 6 9.0 9.00 80.00 6.00 2B286-0800-TA ○ ○ ● 8.00 4.0 6 12.0 12.00 80.00 8.00 2B286-1000-TA ○ ○ ● 10.00 5.0 6 15.0 15.00 100.00 10.00 2B286-1200-TA ○ ○ ● 12.00 6.0 6 18.0 18.00 105.00 12.00 2B286-1600-TA ○ ○ ● 16.00 8.0 6 24.0 24.00 125.00 16.00 2B286-2000-TA ○ ○ ● 20.00 10.0 6 30.0 30.00 150.00 20.00 ● = First choice ○ = Good choice 166
