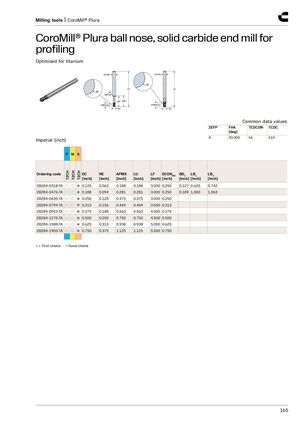

Milling tools | CoroMill® Plura CoroMill® Plura ball nose, solid carbide end mill for profiling​​ Optimised for titanium DCON DCON RE LF LF RE BHTA2 LB1 LB2 APMX/LU APMX/LU DC DC Common data values ZEFP FHA TCDCON TCDC [deg] 4 30.000 h6 h10 Imperial (inch) P M S T2CH T2CH T2CH Ordering code DC RE APMX LU LF DCONMS BD 1 LB 1 _ _ LB 2_ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2B284-0318-TA ○ ○ ● 0.125 0.063 0.188 0.188 3.000 0.250 0.127 0.625 0.742 2B284-0476-TA ○ ○ ● 0.188 0.094 0.281 0.281 3.000 0.250 0.189 1.000 1.063 2B284-0635-TA ○ ○ ● 0.250 0.125 0.375 0.375 3.000 0.250 2B284-0794-TA ○ ○ ● 0.313 0.156 0.469 0.469 3.500 0.313 2B284-0953-TA ○ ○ ● 0.375 0.188 0.563 0.563 4.000 0.375 2B284-1270-TA ○ ○ ● 0.500 0.250 0.750 0.750 4.500 0.500 2B284-1588-TA ○ ○ ● 0.625 0.313 0.938 0.938 5.000 0.625 2B284-1905-TA ○ ○ ● 0.750 0.375 1.125 1.125 5.500 0.750 ● = First choice ○ = Good choice 165
