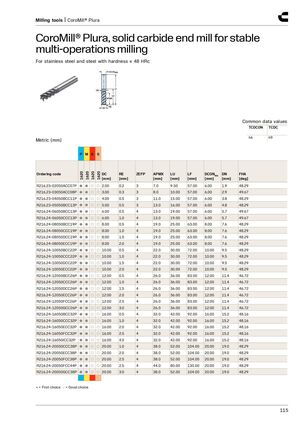

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values TCDCON TCDC h6 h9 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC RE ZEFP APMX LU LF DCONMS DN FHA [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] R216.23-02050ACC07P ● ● ○ ○ 2.00 0.2 3 7.0 9.50 57.00 6.00 1.9 48.29 R216.23-03050ACC08P ● ● ○ ○ 3.00 0.3 3 8.0 10.00 57.00 6.00 2.9 49.67 R216.23-04050BCC11P ● ● ○ ○ 4.00 0.5 3 11.0 15.00 57.00 6.00 3.8 48.29 R216.23-05050BCC13P ● ● ○ ○ 5.00 0.5 3 13.0 16.00 57.00 6.00 4.8 48.29 R216.24-06050BCC13P ● ● ○ ○ 6.00 0.5 4 13.0 19.00 57.00 6.00 5.7 49.67 R216.24-06050CCC13P ● ● ○ ○ 6.00 1.0 4 13.0 19.00 57.00 6.00 5.7 49.67 R216.24-08050BCC19P ● ● ○ ○ 8.00 0.5 4 19.0 25.00 63.00 8.00 7.6 48.29 R216.24-08050CCC19P ● ● ○ ○ 8.00 1.0 4 19.0 25.00 63.00 8.00 7.6 48.29 R216.24-08050DCC19P ● ● ○ ○ 8.00 1.5 4 19.0 25.00 63.00 8.00 7.6 48.29 R216.24-08050ECC19P ● ● ○ ○ 8.00 2.0 4 19.0 25.00 63.00 8.00 7.6 48.29 R216.24-10050BCC22P ● ● ○ ○ 10.00 0.5 4 22.0 30.00 72.00 10.00 9.5 48.29 R216.24-10050CCC22P ● ● ○ ○ 10.00 1.0 4 22.0 30.00 72.00 10.00 9.5 48.29 R216.24-10050DCC22P ● ● ○ ○ 10.00 1.5 4 22.0 30.00 72.00 10.00 9.5 48.29 R216.24-10050ECC22P ● ● ○ ○ 10.00 2.0 4 22.0 30.00 72.00 10.00 9.5 48.29 R216.24-12050BCC26P ● ● ○ ○ 12.00 0.5 4 26.0 36.00 83.00 12.00 11.4 46.72 R216.24-12050CCC26P ● ● ○ ○ 12.00 1.0 4 26.0 36.00 83.00 12.00 11.4 46.72 R216.24-12050DCC26P ● ● ○ ○ 12.00 1.5 4 26.0 36.00 83.00 12.00 11.4 46.72 R216.24-12050ECC26P ● ● ○ ○ 12.00 2.0 4 26.0 36.00 83.00 12.00 11.4 46.72 R216.24-12050FCC26P ● ● ○ ○ 12.00 2.5 4 26.0 36.00 83.00 12.00 11.4 46.72 R216.24-12050GCC26P ● ● ○ ○ 12.00 3.0 4 26.0 36.00 83.00 12.00 11.4 46.72 R216.24-16050BCC32P ● ● ○ ○ 16.00 0.5 4 32.0 42.00 92.00 16.00 15.2 48.16 R216.24-16050CCC32P ● ● ○ ○ 16.00 1.0 4 32.0 42.00 92.00 16.00 15.2 48.16 R216.24-16050ECC32P ● ● ○ ○ 16.00 2.0 4 32.0 42.00 92.00 16.00 15.2 48.16 R216.24-16050FCC32P ● ● ○ ○ 16.00 2.5 4 32.0 42.00 92.00 16.00 15.2 48.16 R216.24-16050ICC32P ● ● ○ ○ 16.00 4.0 4 32.0 42.00 92.00 16.00 15.2 48.16 R216.24-20050CCC38P ● ● ○ ○ 20.00 1.0 4 38.0 52.00 104.00 20.00 19.0 48.29 R216.24-20050ECC38P ● ● ○ ○ 20.00 2.0 4 38.0 52.00 104.00 20.00 19.0 48.29 R216.24-20050FCC38P ● ● ○ ○ 20.00 2.5 4 38.0 52.00 104.00 20.00 19.0 48.29 R216.24-20050FCC44P ● ● ○ ○ 20.00 2.5 4 44.0 80.00 130.00 20.00 19.0 48.29 R216.24-20050GCC38P ● ● ○ ○ 20.00 3.0 4 38.0 52.00 104.00 20.00 19.0 48.29 ● = First choice ○ = Good choice 115
