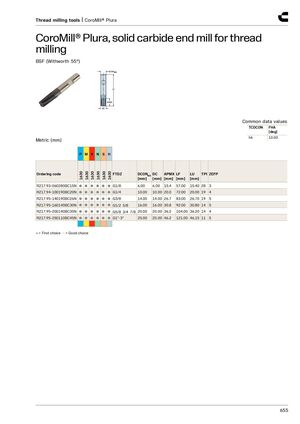

Thread milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for thread milling​​ BSF (Withworth 55°) Common data values TCDCON FHA [deg] h6 10.00 Metric (mm) P M K N S H 1630 1630 1630 1630 1630 1630 Ordering code FTDZ DCONMS DC APMX LF LU TPI ZEFP [mm] [mm] [mm] [mm] [mm] R217.93-060280BC15N ● ● ● ● ● ● G1/8 6.00 6.00 15.4 57.00 15.40 28 3 R217.94-100190BC20N ● ● ● ● ● ● G1/4 10.00 10.00 20.0 72.00 20.00 19 4 R217.95-140190BC26N ● ● ● ● ● ● G3/8 14.00 14.00 26.7 83.00 26.70 19 5 R217.95-160140BC30N ● ● ● ● ● ● G1/2 5/8 16.00 16.00 30.8 92.00 30.80 14 5 R217.95-200140BC35N ● ● ● ● ● ● G5/8 3/4 7/8 20.00 20.00 36.2 104.00 36.20 14 4 R217.95-250110BC45N ● ● ● ● ● ● G1”-3” 25.00 25.00 46.2 121.00 46.15 11 5 ● = First choice ○ = Good choice 655
