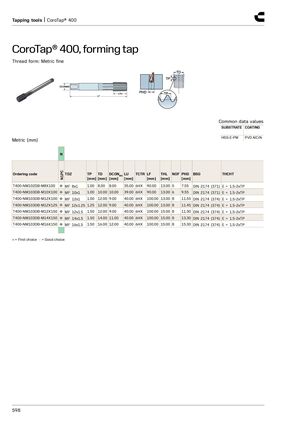

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric fine Common data values SUBSTRATE COATING HSS-E-PM PVD AlCrN Metric (mm) N N1PC Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-NM102DB-M8X100 ● MF 8x1 1.00 8.00 8.00 35.00 6HX 90.00 13.00 5 7.55 DIN 2174 (371) E = 1.5-2xTP T400-NM103DB-M10X100 ● MF 10x1 1.00 10.00 10.00 39.00 6HX 90.00 13.00 6 9.55 DIN 2174 (371) E = 1.5-2xTP T400-NM103DB-M12X100 ● MF 12x1 1.00 12.00 9.00 40.00 6HX 100.00 13.00 8 11.55 DIN 2174 (374) E = 1.5-2xTP T400-NM103DB-M12X125 ● MF 12x1.25 1.25 12.00 9.00 40.00 6HX 100.00 13.00 8 11.45 DIN 2174 (374) E = 1.5-2xTP T400-NM103DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 40.00 6HX 100.00 15.00 8 11.30 DIN 2174 (374) E = 1.5-2xTP T400-NM103DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 40.00 6HX 100.00 15.00 8 13.30 DIN 2174 (374) E = 1.5-2xTP T400-NM103DB-M16X150 ● MF 16x1.5 1.50 16.00 12.00 40.00 6HX 100.00 15.00 8 15.30 DIN 2174 (374) E = 1.5-2xTP ● = First choice ○ = Good choice 598
