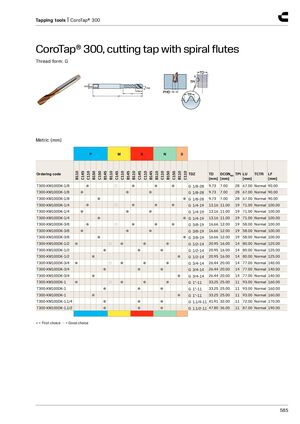

Tapping tools | CoroTap® 300 CoroTap® 300, cutting tap with spiral flutes​​ Thread form: G Metric (mm) P M K N S B110 B150 B145 B110 B145 B110 B145 B110 B150 B110 C145 C110 C150 C145 C110 C145 C110 C110 C150 C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF [mm] [mm] [mm] [mm] T300-XM100DK-1/8 ● ○ ● ● ● G 1/8-28 9.73 7.00 28 67.00 Normal 90.00 T300-XM100DK-1/8 ● ● ● G 1/8-28 9.73 7.00 28 67.00 Normal 90.00 T300-XM100DK-1/8 ● ● G 1/8-28 9.73 7.00 28 67.00 Normal 90.00 T300-XM100DK-1/4 ● ○ ● ● ● G 1/4-19 13.16 11.00 19 71.00 Normal 100.00 T300-XM100DK-1/4 ● ● ● G 1/4-19 13.16 11.00 19 71.00 Normal 100.00 T300-XM100DK-1/4 ● ● G 1/4-19 13.16 11.00 19 71.00 Normal 100.00 T300-XM100DK-3/8 ● ○ ● ● ● G 3/8-19 16.66 12.00 19 58.00 Normal 100.00 T300-XM100DK-3/8 ● ● ● G 3/8-19 16.66 12.00 19 58.00 Normal 100.00 T300-XM100DK-3/8 ● ● G 3/8-19 16.66 12.00 19 58.00 Normal 100.00 T300-XM100DK-1/2 ● ○ ● ● ● G 1/2-14 20.95 16.00 14 80.00 Normal 125.00 T300-XM100DK-1/2 ● ● ● G 1/2-14 20.95 16.00 14 80.00 Normal 125.00 T300-XM100DK-1/2 ● ● G 1/2-14 20.95 16.00 14 80.00 Normal 125.00 T300-XM100DK-3/4 ● ○ ● ● ● G 3/4-14 26.44 20.00 14 77.00 Normal 140.00 T300-XM100DK-3/4 ● ● ● G 3/4-14 26.44 20.00 14 77.00 Normal 140.00 T300-XM100DK-3/4 ● ● G 3/4-14 26.44 20.00 14 77.00 Normal 140.00 T300-XM100DK-1 ● ○ ● ● ● G 1”-11 33.25 25.00 11 93.00 Normal 160.00 T300-XM100DK-1 ● ● ● G 1”-11 33.25 25.00 11 93.00 Normal 160.00 T300-XM100DK-1 ● ● G 1”-11 33.25 25.00 11 93.00 Normal 160.00 T300-XM100DK-1.1/4 ● ● ● G 1.1/4-11 41.91 32.00 11 72.00 Normal 170.00 T300-XM100DK-1.1/2 ● ● ● G 1.1/2-11 47.80 36.00 11 87.00 Normal 190.00 ● = First choice ○ = Good choice 585
