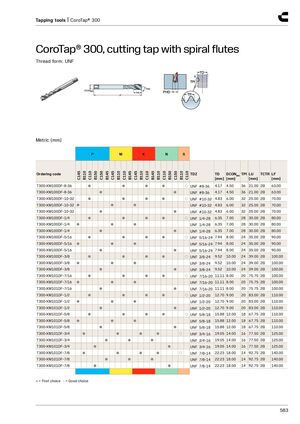

Tapping tools | CoroTap® 300 CoroTap® 300, cutting tap with spiral flutes​​ Thread form: UNF Metric (mm) P M K N S B110 B150 B145 B110 B145 B110 B145 B110 B150 B110 C145 C110 C150 C145 C110 C145 C110 C110 C150 C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF [mm] [mm] [mm] [mm] T300-XM100DF-8-36 ● ● ● ● ○ UNF #8-36 4.17 4.50 36 21.00 2B 63.00 T300-XM100DF-8-36 ● ● UNF #8-36 4.17 4.50 36 21.00 2B 63.00 T300-XM100DF-10-32 ● ● ● ● ○ UNF #10-32 4.83 6.00 32 25.00 2B 70.00 T300-XM100DF-10-32 ● ● ● UNF #10-32 4.83 6.00 32 25.00 2B 70.00 T300-XM100DF-10-32 ● ● UNF #10-32 4.83 6.00 32 25.00 2B 70.00 T300-XM100DF-1/4 ● ● ● ● ○ UNF 1/4-28 6.35 7.00 28 30.00 2B 80.00 T300-XM100DF-1/4 ● ● ● UNF 1/4-28 6.35 7.00 28 30.00 2B 80.00 T300-XM100DF-1/4 ● ● UNF 1/4-28 6.35 7.00 28 30.00 2B 80.00 T300-XM100DF-5/16 ● ● ● ● ○ UNF 5/16-24 7.94 8.00 24 35.00 2B 90.00 T300-XM100DF-5/16 ● ● ● UNF 5/16-24 7.94 8.00 24 35.00 2B 90.00 T300-XM100DF-5/16 ● ● UNF 5/16-24 7.94 8.00 24 35.00 2B 90.00 T300-XM100DF-3/8 ● ● ● ● ○ UNF 3/8-24 9.52 10.00 24 39.00 2B 100.00 T300-XM100DF-3/8 ● ● ● UNF 3/8-24 9.52 10.00 24 39.00 2B 100.00 T300-XM100DF-3/8 ● ● UNF 3/8-24 9.52 10.00 24 39.00 2B 100.00 T300-XM101DF-7/16 ● ● ● ● ○ UNF 7/16-20 11.11 8.00 20 75.75 2B 100.00 T300-XM101DF-7/16 ● ● ● UNF 7/16-20 11.11 8.00 20 75.75 2B 100.00 T300-XM101DF-7/16 ● ● UNF 7/16-20 11.11 8.00 20 75.75 2B 100.00 T300-XM101DF-1/2 ● ● ● ● ○ UNF 1/2-20 12.70 9.00 20 83.00 2B 110.00 T300-XM101DF-1/2 ● ● ● UNF 1/2-20 12.70 9.00 20 83.00 2B 110.00 T300-XM101DF-1/2 ● ● UNF 1/2-20 12.70 9.00 20 83.00 2B 110.00 T300-XM101DF-5/8 ● ● ● ● ○ UNF 5/8-18 15.88 12.00 18 67.75 2B 110.00 T300-XM101DF-5/8 ● ● ● UNF 5/8-18 15.88 12.00 18 67.75 2B 110.00 T300-XM101DF-5/8 ● ● UNF 5/8-18 15.88 12.00 18 67.75 2B 110.00 T300-XM101DF-3/4 ● ● ● ● ○ UNF 3/4-16 19.05 14.00 16 77.50 2B 125.00 T300-XM101DF-3/4 ● ● ● UNF 3/4-16 19.05 14.00 16 77.50 2B 125.00 T300-XM101DF-3/4 ● ● UNF 3/4-16 19.05 14.00 16 77.50 2B 125.00 T300-XM101DF-7/8 ● ● ● ● ○ UNF 7/8-14 22.23 18.00 14 92.75 2B 140.00 T300-XM101DF-7/8 ● ● ● UNF 7/8-14 22.23 18.00 14 92.75 2B 140.00 T300-XM101DF-7/8 ● ● UNF 7/8-14 22.23 18.00 14 92.75 2B 140.00 ● = First choice ○ = Good choice 583
