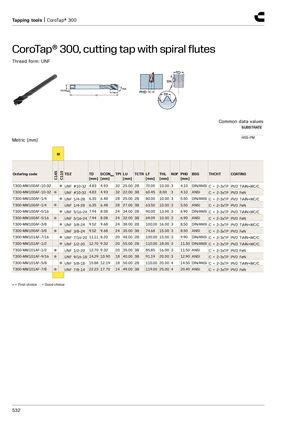

Tapping tools | CoroTap® 300 CoroTap® 300, cutting tap with spiral flutes​​ Thread form: UNF Common data values SUBSTRATE HSS-PM Metric (mm) M C145 C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT COATING [mm] [mm] [mm] [mm] [mm] [mm] T300-MM100AF-10-32 ● UNF #10-32 4.83 4.93 32 25.00 2B 70.00 10.00 3 4.10 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AF-10-32 ● UNF #10-32 4.83 4.93 32 22.00 3B 60.45 8.00 3 4.10 ANSI C = 2-3xTP PVD FeN T300-MM100AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2B 80.00 10.00 3 5.50 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AF-1/4 ● UNF 1/4-28 6.35 6.48 28 27.00 3B 63.50 10.00 3 5.50 ANSI C = 2-3xTP PVD FeN T300-MM100AF-5/16 ● UNF 5/16-24 7.94 8.08 24 34.00 2B 90.00 13.00 3 6.90 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AF-5/16 ● UNF 5/16-24 7.94 8.08 24 32.00 3B 69.09 10.00 3 6.90 ANSI C = 2-3xTP PVD FeN T300-MM100AF-3/8 ● UNF 3/8-24 9.52 9.68 24 38.00 2B 100.00 16.00 3 8.50 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AF-3/8 ● UNF 3/8-24 9.52 9.68 24 35.00 3B 74.68 15.00 3 8.50 ANSI C = 2-3xTP PVD FeN T300-MM101AF-7/16 ● UNF 7/16-20 11.11 8.20 20 48.00 2B 100.00 15.00 3 9.90 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM101AF-1/2 ● UNF 1/2-20 12.70 9.32 20 55.00 2B 110.00 18.00 3 11.50 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM101AF-1/2 ● UNF 1/2-20 12.70 9.32 20 35.00 3B 85.85 16.00 3 11.50 ANSI C = 2-3xTP PVD FeN T300-MM101AF-9/16 ● UNF 9/16-18 14.29 10.90 18 40.00 3B 91.19 20.00 3 12.90 ANSI C = 2-3xTP PVD FeN T300-MM101AF-5/8 ● UNF 5/8-18 15.88 12.19 18 50.00 2B 110.00 20.00 4 14.50 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM101AF-7/8 ● UNF 7/8-14 22.23 17.70 14 49.00 3B 119.00 25.00 4 20.40 ANSI C = 2-3xTP PVD FeN ● = First choice ○ = Good choice 532
