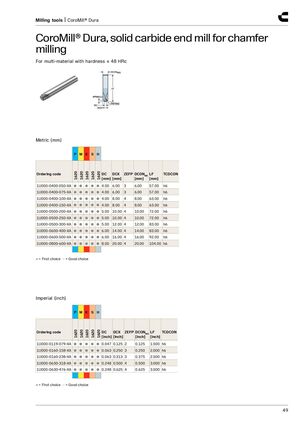

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for chamfer milling​​ For multi-material with hardness ≤ 48 HRc Metric (mm) P M K S H 1620 1620 1620 1620 1620 Ordering code DC DCX ZEFP DCONMS LF TCDCON [mm] [mm] [mm] [mm] 1U000-0400-050-XA ● ● ● ● ● 4.00 6.00 3 6.00 57.00 h6 1U000-0400-075-XA ● ● ● ● ● 4.00 6.00 3 6.00 57.00 h6 1U000-0400-100-XA ● ● ● ● ● 4.00 8.00 4 8.00 63.00 h6 1U000-0400-150-XA ● ● ● ● ● 4.00 8.00 4 8.00 63.00 h6 1U000-0500-200-XA ● ● ● ● ● 5.00 10.00 4 10.00 72.00 h6 1U000-0500-250-XA ● ● ● ● ● 5.00 10.00 4 10.00 72.00 h6 1U000-0500-300-XA ● ● ● ● ● 5.00 12.00 4 12.00 83.00 h6 1U000-0600-400-XA ● ● ● ● ● 6.00 14.00 4 14.00 83.00 h6 1U000-0600-500-XA ● ● ● ● ● 6.00 16.00 4 16.00 92.00 h6 1U000-0800-600-XA ● ● ● ● ● 8.00 20.00 4 20.00 104.00 h6 ● = First choice ○ = Good choice Imperial (inch) P M K S H 1620 1620 1620 1620 1620 Ordering code DC DCX ZEFP DCONMS LF TCDCON [inch] [inch] [inch] [inch] 1U000-0119-079-XA ● ● ● ● ● 0.047 0.125 2 0.125 1.500 h6 1U000-0160-158-XA ● ● ● ● ● 0.063 0.250 3 0.250 2.000 h6 1U000-0160-238-XA ● ● ● ● ● 0.063 0.313 3 0.375 2.500 h6 1U000-0630-318-XA ● ● ● ● ● 0.248 0.500 4 0.500 3.000 h6 1U000-0630-476-XA ● ● ● ● ● 0.248 0.625 4 0.625 3.500 h6 ● = First choice ○ = Good choice 49
