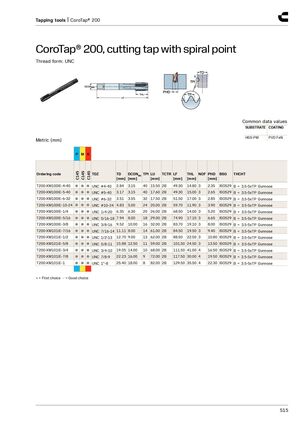

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point Thread form: UNC Common data values SUBSTRATE COATING HSS-PM PVD FeN Metric (mm) P M K C145 C145 C145 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T200-XM100IE-4-40 ● ● ● UNC #4-40 2.84 3.15 40 15.50 2B 49.30 14.80 3 2.35 ISO529 B = 3.5-5xTP Gunnose T200-XM100IE-5-40 ● ● ● UNC #5-40 3.17 3.15 40 17.60 2B 49.30 15.00 3 2.65 ISO529 B = 3.5-5xTP Gunnose T200-XM100IE-6-32 ● ● ● UNC #6-32 3.51 3.55 32 17.50 2B 51.50 17.00 3 2.85 ISO529 B = 3.5-5xTP Gunnose T200-XM100IE-10-24 ● ● ● UNC #10-24 4.83 5.00 24 20.00 2B 59.70 11.90 3 3.90 ISO529 B = 3.5-5xTP Gunnose T200-XM100IE-1/4 ● ● ● UNC 1/4-20 6.35 6.30 20 26.00 2B 68.50 14.00 3 5.20 ISO529 B = 3.5-5xTP Gunnose T200-XM100IE-5/16 ● ● ● UNC 5/16-18 7.94 8.00 18 29.00 2B 74.90 17.10 3 6.65 ISO529 B = 3.5-5xTP Gunnose T200-XM100IE-3/8 ● ● ● UNC 3/8-16 9.52 10.00 16 32.00 2B 83.70 19.10 3 8.00 ISO529 B = 3.5-5xTP Gunnose T200-XM101IE-7/16 ● ● ● UNC 7/16-14 11.11 8.00 14 61.00 2B 84.50 19.50 3 9.40 ISO529 B = 3.5-5xTP Gunnose T200-XM101IE-1/2 ● ● ● UNC 1/2-13 12.70 9.00 13 62.00 2B 88.50 22.50 3 10.80 ISO529 B = 3.5-5xTP Gunnose T200-XM101IE-5/8 ● ● ● UNC 5/8-11 15.88 12.50 11 59.00 2B 101.50 24.50 3 13.50 ISO529 B = 3.5-5xTP Gunnose T200-XM101IE-3/4 ● ● ● UNC 3/4-10 19.05 14.00 10 68.00 2B 111.50 41.00 4 16.50 ISO529 B = 3.5-5xTP Gunnose T200-XM101IE-7/8 ● ● ● UNC 7/8-9 22.23 16.00 9 72.00 2B 117.50 30.00 4 19.50 ISO529 B = 3.5-5xTP Gunnose T200-XM101IE-1 ● ● ● UNC 1”-8 25.40 18.00 8 82.00 2B 129.50 35.50 4 22.30 ISO529 B = 3.5-5xTP Gunnose ● = First choice ○ = Good choice 515
