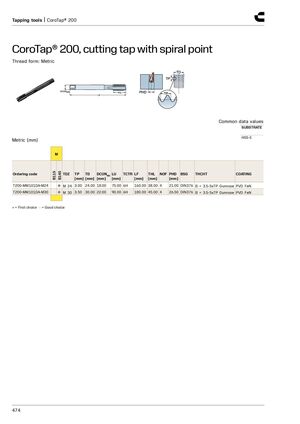

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: Metric Common data values SUBSTRATE HSS-E Metric (mm) M B115 B145 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT COATING [mm] [mm] [mm] [mm] [mm] [mm] [mm] T200-MM101DA-M24 ● M 24 3.00 24.00 18.00 75.00 6H 160.00 38.00 4 21.00 DIN376 B = 3.5-5xTP Gunnose PVD FeN T200-MM101DA-M30 ● M 30 3.50 30.00 22.00 90.00 6H 180.00 45.00 4 26.50 DIN376 B = 3.5-5xTP Gunnose PVD FeN ● = First choice ○ = Good choice 474
