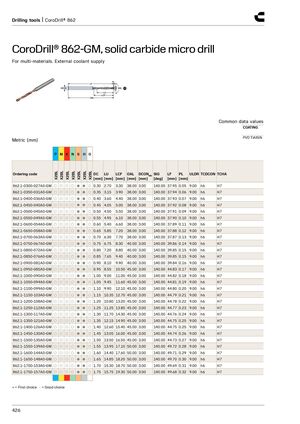

Drilling tools | CoroDrill® 862 CoroDrill® 862-GM, solid carbide micro drill​​ For multi-materials. External coolant supply Common data values COATING PVD TiAlSiN Metric (mm) P M K N S H O X2BL X2BL X2BL X2BL X2BL X2BL X2BL Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 862.1-0300-027A0-GM ○ ○ ○ ○ ● ● ○ 0.30 2.70 3.30 38.00 3.00 140.00 37.95 0.05 9.00 h6 H7 862.1-0350-031A0-GM ○ ○ ○ ○ ● ● ○ 0.35 3.15 3.90 38.00 3.00 140.00 37.94 0.06 9.00 h6 H7 862.1-0400-036A0-GM ○ ○ ○ ○ ● ● ○ 0.40 3.60 4.40 38.00 3.00 140.00 37.93 0.07 9.00 h6 H7 862.1-0450-040A0-GM ○ ○ ○ ○ ● ● ○ 0.45 4.05 5.00 38.00 3.00 140.00 37.92 0.08 9.00 h6 H7 862.1-0500-045A0-GM ○ ○ ○ ○ ● ● ○ 0.50 4.50 5.50 38.00 3.00 140.00 37.91 0.09 9.00 h6 H7 862.1-0550-049A0-GM ○ ○ ○ ○ ● ● ○ 0.55 4.95 6.10 38.00 3.00 140.00 37.90 0.10 9.00 h6 H7 862.1-0600-054A0-GM ○ ○ ○ ○ ● ● ○ 0.60 5.40 6.60 38.00 3.00 140.00 37.89 0.11 9.00 h6 H7 862.1-0650-058A0-GM ○ ○ ○ ○ ● ● ○ 0.65 5.85 7.20 38.00 3.00 140.00 37.88 0.12 9.00 h6 H7 862.1-0700-063A0-GM ○ ○ ○ ○ ● ● ○ 0.70 6.30 7.70 38.00 3.00 140.00 37.87 0.13 9.00 h6 H7 862.1-0750-067A0-GM ○ ○ ○ ○ ● ● ○ 0.75 6.75 8.30 40.00 3.00 140.00 39.86 0.14 9.00 h6 H7 862.1-0800-072A0-GM ○ ○ ○ ○ ● ● ○ 0.80 7.20 8.80 40.00 3.00 140.00 39.85 0.15 9.00 h6 H7 862.1-0850-076A0-GM ○ ○ ○ ○ ● ● ○ 0.85 7.65 9.40 40.00 3.00 140.00 39.85 0.15 9.00 h6 H7 862.1-0900-081A0-GM ○ ○ ○ ○ ● ● ○ 0.90 8.10 9.90 40.00 3.00 140.00 39.84 0.16 9.00 h6 H7 862.1-0950-085A0-GM ○ ○ ○ ○ ● ● ○ 0.95 8.55 10.50 45.00 3.00 140.00 44.83 0.17 9.00 h6 H7 862.1-1000-090A0-GM ○ ○ ○ ○ ● ● ○ 1.00 9.00 11.00 45.00 3.00 140.00 44.82 0.18 9.00 h6 H7 862.1-1050-094A0-GM ○ ○ ○ ○ ● ● ○ 1.05 9.45 11.60 45.00 3.00 140.00 44.81 0.19 9.00 h6 H7 862.1-1100-099A0-GM ○ ○ ○ ○ ● ● ○ 1.10 9.90 12.10 45.00 3.00 140.00 44.80 0.20 9.00 h6 H7 862.1-1150-103A0-GM ○ ○ ○ ○ ● ● ○ 1.15 10.35 12.70 45.00 3.00 140.00 44.79 0.21 9.00 h6 H7 862.1-1200-108A0-GM ○ ○ ○ ○ ● ● ○ 1.20 10.80 13.20 45.00 3.00 140.00 44.78 0.22 9.00 h6 H7 862.1-1250-112A0-GM ○ ○ ○ ○ ● ● ○ 1.25 11.25 13.80 45.00 3.00 140.00 44.77 0.23 9.00 h6 H7 862.1-1300-117A0-GM ○ ○ ○ ○ ● ● ○ 1.30 11.70 14.30 45.00 3.00 140.00 44.76 0.24 9.00 h6 H7 862.1-1350-121A0-GM ○ ○ ○ ○ ● ● ○ 1.35 12.15 14.90 45.00 3.00 140.00 44.75 0.25 9.00 h6 H7 862.1-1400-126A0-GM ○ ○ ○ ○ ● ● ○ 1.40 12.60 15.40 45.00 3.00 140.00 44.75 0.25 9.00 h6 H7 862.1-1450-130A0-GM ○ ○ ○ ○ ● ● ○ 1.45 13.05 16.00 45.00 3.00 140.00 44.74 0.26 9.00 h6 H7 862.1-1500-135A0-GM ○ ○ ○ ○ ● ● ○ 1.50 13.50 16.50 45.00 3.00 140.00 44.73 0.27 9.00 h6 H7 862.1-1550-139A0-GM ○ ○ ○ ○ ● ● ○ 1.55 13.95 17.10 50.00 3.00 140.00 49.72 0.28 9.00 h6 H7 862.1-1600-144A0-GM ○ ○ ○ ○ ● ● ○ 1.60 14.40 17.60 50.00 3.00 140.00 49.71 0.29 9.00 h6 H7 862.1-1650-148A0-GM ○ ○ ○ ○ ● ● ○ 1.65 14.85 18.20 50.00 3.00 140.00 49.70 0.30 9.00 h6 H7 862.1-1700-153A0-GM ○ ○ ○ ○ ● ● ○ 1.70 15.30 18.70 50.00 3.00 140.00 49.69 0.31 9.00 h6 H7 862.1-1750-157A0-GM ○ ○ ○ ○ ● ● ○ 1.75 15.75 19.30 50.00 3.00 140.00 49.68 0.32 9.00 h6 H7 ● = First choice ○ = Good choice 426
