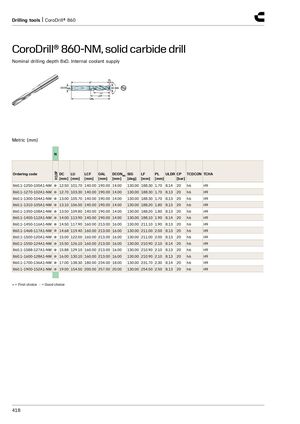

Drilling tools | CoroDrill® 860 CoroDrill® 860-NM, solid carbide drill​​ Nominal drilling depth 8xD. Internal coolant supply Metric (mm) N H10F Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 860.1-1250-100A1-NM ● 12.50 101.70 140.00 190.00 14.00 130.00 188.30 1.70 8.14 20 h6 H9 860.1-1270-102A1-NM ● 12.70 103.30 140.00 190.00 14.00 130.00 188.30 1.70 8.13 20 h6 H9 860.1-1300-104A1-NM ● 13.00 105.70 140.00 190.00 14.00 130.00 188.30 1.70 8.13 20 h6 H9 860.1-1310-105A1-NM ● 13.10 106.50 140.00 190.00 14.00 130.00 188.20 1.80 8.13 20 h6 H9 860.1-1350-108A1-NM ● 13.50 109.80 140.00 190.00 14.00 130.00 188.20 1.80 8.13 20 h6 H9 860.1-1400-112A1-NM ● 14.00 113.90 140.00 190.00 14.00 130.00 188.10 1.90 8.14 20 h6 H9 860.1-1450-116A1-NM ● 14.50 117.90 160.00 213.00 16.00 130.00 211.10 1.90 8.13 20 h6 H9 860.1-1468-117A1-NM ● 14.68 119.40 160.00 213.00 16.00 130.00 211.00 2.00 8.13 20 h6 H9 860.1-1500-120A1-NM ● 15.00 122.00 160.00 213.00 16.00 130.00 211.00 2.00 8.13 20 h6 H9 860.1-1550-124A1-NM ● 15.50 126.10 160.00 213.00 16.00 130.00 210.90 2.10 8.14 20 h6 H9 860.1-1588-127A1-NM ● 15.88 129.10 160.00 213.00 16.00 130.00 210.90 2.10 8.13 20 h6 H9 860.1-1600-128A1-NM ● 16.00 130.10 160.00 213.00 16.00 130.00 210.90 2.10 8.13 20 h6 H9 860.1-1700-136A1-NM ● 17.00 138.30 180.00 234.00 18.00 130.00 231.70 2.30 8.14 20 h6 H9 860.1-1900-152A1-NM ● 19.00 154.50 200.00 257.00 20.00 130.00 254.50 2.50 8.13 20 h6 H9 ● = First choice ○ = Good choice 418
