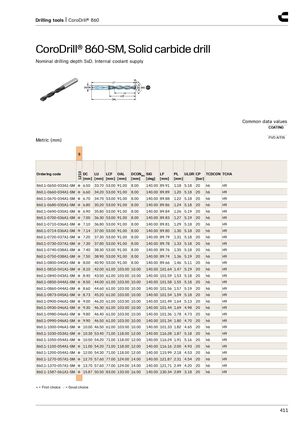

Drilling tools | CoroDrill® 860 CoroDrill® 860-SM, Solid carbide drill Nominal drilling depth 5xD. Internal coolant supply Common data values COATING PVD AlTiN Metric (mm) S 1210 Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 860.1-0650-033A1-SM ● 6.50 33.70 53.00 91.00 8.00 140.00 89.91 1.18 5.18 20 h6 H9 860.1-0660-034A1-SM ● 6.60 34.20 53.00 91.00 8.00 140.00 89.89 1.20 5.18 20 h6 H9 860.1-0670-034A1-SM ● 6.70 34.70 53.00 91.00 8.00 140.00 89.88 1.22 5.18 20 h6 H9 860.1-0680-035A1-SM ● 6.80 35.20 53.00 91.00 8.00 140.00 89.86 1.24 5.18 20 h6 H9 860.1-0690-035A1-SM ● 6.90 35.80 53.00 91.00 8.00 140.00 89.84 1.26 5.19 20 h6 H9 860.1-0700-036A1-SM ● 7.00 36.30 53.00 91.00 8.00 140.00 89.83 1.27 5.19 20 h6 H9 860.1-0710-036A1-SM ● 7.10 36.80 53.00 91.00 8.00 140.00 89.81 1.29 5.18 20 h6 H9 860.1-0714-036A1-SM ● 7.14 37.00 53.00 91.00 8.00 140.00 89.80 1.30 5.18 20 h6 H9 860.1-0720-037A1-SM ● 7.20 37.30 53.00 91.00 8.00 140.00 89.79 1.31 5.18 20 h6 H9 860.1-0730-037A1-SM ● 7.30 37.80 53.00 91.00 8.00 140.00 89.78 1.33 5.18 20 h6 H9 860.1-0740-038A1-SM ● 7.40 38.30 53.00 91.00 8.00 140.00 89.76 1.35 5.18 20 h6 H9 860.1-0750-038A1-SM ● 7.50 38.90 53.00 91.00 8.00 140.00 89.74 1.36 5.19 20 h6 H9 860.1-0800-040A1-SM ● 8.00 40.90 53.00 91.00 8.00 140.00 89.66 1.46 5.11 20 h6 H9 860.1-0810-041A1-SM ● 8.10 42.00 61.00 103.00 10.00 140.00 101.64 1.47 5.19 20 h6 H9 860.1-0840-043A1-SM ● 8.40 43.50 61.00 103.00 10.00 140.00 101.59 1.53 5.18 20 h6 H9 860.1-0850-044A1-SM ● 8.50 44.00 61.00 103.00 10.00 140.00 101.58 1.55 5.18 20 h6 H9 860.1-0860-044A1-SM ● 8.60 44.60 61.00 103.00 10.00 140.00 101.56 1.57 5.19 20 h6 H9 860.1-0873-045A1-SM ● 8.73 45.20 61.00 103.00 10.00 140.00 101.54 1.59 5.18 20 h6 H9 860.1-0900-046A1-SM ● 9.00 46.20 61.00 103.00 10.00 140.00 101.49 1.64 5.13 20 h6 H9 860.1-0930-046A1-SM ● 9.30 46.30 61.00 103.00 10.00 140.00 101.44 1.69 4.98 20 h6 H9 860.1-0980-046A1-SM ● 9.80 46.40 61.00 103.00 10.00 140.00 101.36 1.78 4.73 20 h6 H9 860.1-0990-046A1-SM ● 9.90 46.50 61.00 103.00 10.00 140.00 101.34 1.80 4.70 20 h6 H9 860.1-1000-046A1-SM ● 10.00 46.50 61.00 103.00 10.00 140.00 101.33 1.82 4.65 20 h6 H9 860.1-1030-053A1-SM ● 10.30 53.40 71.00 118.00 12.00 140.00 116.28 1.87 5.18 20 h6 H9 860.1-1050-054A1-SM ● 10.50 54.20 71.00 118.00 12.00 140.00 116.24 1.91 5.16 20 h6 H9 860.1-1100-054A1-SM ● 11.00 54.20 71.00 118.00 12.00 140.00 116.16 2.00 4.93 20 h6 H9 860.1-1200-054A1-SM ● 12.00 54.30 71.00 118.00 12.00 140.00 115.99 2.18 4.53 20 h6 H9 860.1-1270-057A1-SM ● 12.70 57.60 77.00 124.00 14.00 140.00 121.87 2.31 4.54 20 h6 H9 860.1-1370-057A1-SM ● 13.70 57.60 77.00 124.00 14.00 140.00 121.71 2.49 4.20 20 h6 H9 860.1-1587-061A1-SM ● 15.87 50.50 83.00 133.00 16.00 140.00 130.34 2.89 3.18 20 h6 H9 ● = First choice ○ = Good choice 411
