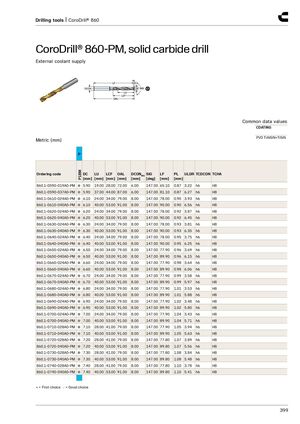

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill​​ External coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0590-019A0-PM ● 5.90 19.00 28.00 72.00 6.00 147.00 65.10 0.87 3.22 h6 H8 860.1-0590-037A0-PM ● 5.90 37.00 44.00 87.00 6.00 147.00 81.10 0.87 6.27 h6 H8 860.1-0610-024A0-PM ● 6.10 24.00 34.00 79.00 8.00 147.00 78.00 0.90 3.93 h6 H8 860.1-0610-040A0-PM ● 6.10 40.00 53.00 91.00 8.00 147.00 90.00 0.90 6.56 h6 H8 860.1-0620-024A0-PM ● 6.20 24.00 34.00 79.00 8.00 147.00 78.00 0.92 3.87 h6 H8 860.1-0620-040A0-PM ● 6.20 40.00 53.00 91.00 8.00 147.00 90.00 0.92 6.45 h6 H8 860.1-0630-024A0-PM ● 6.30 24.00 34.00 79.00 8.00 147.00 78.00 0.93 3.81 h6 H8 860.1-0630-040A0-PM ● 6.30 40.00 53.00 91.00 8.00 147.00 90.00 0.93 6.35 h6 H8 860.1-0640-024A0-PM ● 6.40 24.00 34.00 79.00 8.00 147.00 78.00 0.95 3.75 h6 H8 860.1-0640-040A0-PM ● 6.40 40.00 53.00 91.00 8.00 147.00 90.00 0.95 6.25 h6 H8 860.1-0650-024A0-PM ● 6.50 24.00 34.00 79.00 8.00 147.00 77.90 0.96 3.69 h6 H8 860.1-0650-040A0-PM ● 6.50 40.00 53.00 91.00 8.00 147.00 89.90 0.96 6.15 h6 H8 860.1-0660-024A0-PM ● 6.60 24.00 34.00 79.00 8.00 147.00 77.90 0.98 3.64 h6 H8 860.1-0660-040A0-PM ● 6.60 40.00 53.00 91.00 8.00 147.00 89.90 0.98 6.06 h6 H8 860.1-0670-024A0-PM ● 6.70 24.00 34.00 79.00 8.00 147.00 77.90 0.99 3.58 h6 H8 860.1-0670-040A0-PM ● 6.70 40.00 53.00 91.00 8.00 147.00 89.90 0.99 5.97 h6 H8 860.1-0680-024A0-PM ● 6.80 24.00 34.00 79.00 8.00 147.00 77.90 1.01 3.53 h6 H8 860.1-0680-040A0-PM ● 6.80 40.00 53.00 91.00 8.00 147.00 89.90 1.01 5.88 h6 H8 860.1-0690-024A0-PM ● 6.90 24.00 34.00 79.00 8.00 147.00 77.90 1.02 3.48 h6 H8 860.1-0690-040A0-PM ● 6.90 40.00 53.00 91.00 8.00 147.00 89.90 1.02 5.80 h6 H8 860.1-0700-024A0-PM ● 7.00 24.00 34.00 79.00 8.00 147.00 77.90 1.04 3.43 h6 H8 860.1-0700-040A0-PM ● 7.00 40.00 53.00 91.00 8.00 147.00 89.90 1.04 5.71 h6 H8 860.1-0710-028A0-PM ● 7.10 28.00 41.00 79.00 8.00 147.00 77.90 1.05 3.94 h6 H8 860.1-0710-040A0-PM ● 7.10 40.00 53.00 91.00 8.00 147.00 89.90 1.05 5.63 h6 H8 860.1-0720-028A0-PM ● 7.20 28.00 41.00 79.00 8.00 147.00 77.80 1.07 3.89 h6 H8 860.1-0720-040A0-PM ● 7.20 40.00 53.00 91.00 8.00 147.00 89.80 1.07 5.56 h6 H8 860.1-0730-028A0-PM ● 7.30 28.00 41.00 79.00 8.00 147.00 77.80 1.08 3.84 h6 H8 860.1-0730-040A0-PM ● 7.30 40.00 53.00 91.00 8.00 147.00 89.80 1.08 5.48 h6 H8 860.1-0740-028A0-PM ● 7.40 28.00 41.00 79.00 8.00 147.00 77.80 1.10 3.78 h6 H8 860.1-0740-040A0-PM ● 7.40 40.00 53.00 91.00 8.00 147.00 89.80 1.10 5.41 h6 H8 ● = First choice ○ = Good choice 399
