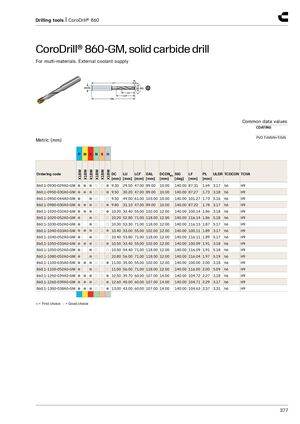

Drilling tools | CoroDrill® 860 CoroDrill® 860-GM, solid carbide drill​​ For multi-materials. External coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P M K N S H X1BM X1BM X1BM X1BM X1BM X1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0930-029A0-GM ● ● ● ○ ○ ● 9.30 29.50 47.00 89.00 10.00 140.00 87.31 1.69 3.17 h6 H9 860.1-0950-030A0-GM ● ● ● ○ ○ ● 9.50 30.20 47.00 89.00 10.00 140.00 87.27 1.73 3.18 h6 H9 860.1-0950-044A0-GM ● ● ○ ○ 9.50 49.00 61.00 103.00 10.00 140.00 101.27 1.73 5.16 h6 H9 860.1-0980-030A0-GM ● ● ● ○ ○ ● 9.80 31.10 47.00 89.00 10.00 140.00 87.22 1.78 3.17 h6 H9 860.1-1020-032A0-GM ● ● ● ○ ○ ● 10.20 32.40 55.00 102.00 12.00 140.00 100.14 1.86 3.18 h6 H9 860.1-1020-052A0-GM ● ● ○ ○ 10.20 52.80 71.00 118.00 12.00 140.00 116.14 1.86 5.18 h6 H9 860.1-1030-052A0-GM ● ● ○ ○ 10.30 53.30 71.00 118.00 12.00 140.00 116.13 1.87 5.17 h6 H9 860.1-1040-033A0-GM ● ● ● ○ ○ ● 10.40 33.00 55.00 102.00 12.00 140.00 100.11 1.89 3.17 h6 H9 860.1-1040-052A0-GM ● ● ○ ○ 10.40 53.80 71.00 118.00 12.00 140.00 116.11 1.89 5.17 h6 H9 860.1-1050-033A0-GM ● ● ● ○ ○ ● 10.50 33.40 55.00 102.00 12.00 140.00 100.09 1.91 3.18 h6 H9 860.1-1050-052A0-GM ● ● ○ ○ 10.50 54.40 71.00 118.00 12.00 140.00 116.09 1.91 5.18 h6 H9 860.1-1080-052A0-GM ● ● ○ ○ 10.80 56.00 71.00 118.00 12.00 140.00 116.04 1.97 5.19 h6 H9 860.1-1100-035A0-GM ● ● ● ○ ○ ● 11.00 35.00 55.00 102.00 12.00 140.00 100.00 2.00 3.18 h6 H9 860.1-1100-052A0-GM ● ● ○ ○ 11.00 56.00 71.00 118.00 12.00 140.00 116.00 2.00 5.09 h6 H9 860.1-1250-039A0-GM ● ● ● ○ ○ ● 12.50 39.70 60.00 107.00 14.00 140.00 104.72 2.27 3.18 h6 H9 860.1-1260-039A0-GM ● ● ● ○ ○ ● 12.60 40.00 60.00 107.00 14.00 140.00 104.71 2.29 3.17 h6 H9 860.1-1300-038A0-GM ● ● ● ○ ○ ● 13.00 43.00 60.00 107.00 14.00 140.00 104.63 2.37 3.31 h6 H9 ● = First choice ○ = Good choice 377
