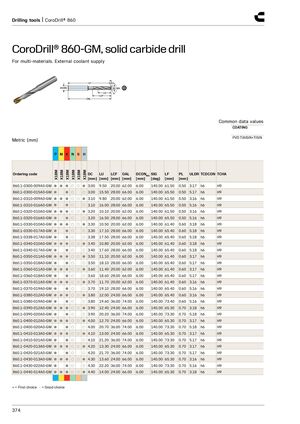

Drilling tools | CoroDrill® 860 CoroDrill® 860-GM, solid carbide drill​​ For multi-materials. External coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P M K N S H X1BM X1BM X1BM X1BM X1BM X1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0300-009A0-GM ● ● ● ○ ○ ● 3.00 9.50 20.00 62.00 6.00 140.00 61.50 0.50 3.17 h6 H9 860.1-0300-015A0-GM ● ● ○ ○ 3.00 15.50 28.00 66.00 6.00 140.00 65.50 0.50 5.17 h6 H9 860.1-0310-009A0-GM ● ● ● ○ ○ ● 3.10 9.80 20.00 62.00 6.00 140.00 61.50 0.50 3.16 h6 H9 860.1-0310-016A0-GM ● ● ○ ○ 3.10 16.00 28.00 66.00 6.00 140.00 65.50 0.50 5.16 h6 H9 860.1-0320-010A0-GM ● ● ● ○ ○ ● 3.20 10.10 20.00 62.00 6.00 140.00 61.50 0.50 3.16 h6 H9 860.1-0320-016A0-GM ● ● ○ ○ 3.20 16.50 28.00 66.00 6.00 140.00 65.50 0.50 5.16 h6 H9 860.1-0330-010A0-GM ● ● ● ○ ○ ● 3.30 10.50 20.00 62.00 6.00 140.00 61.40 0.60 3.18 h6 H9 860.1-0330-017A0-GM ● ● ○ ○ 3.30 17.10 28.00 66.00 6.00 140.00 65.40 0.60 5.18 h6 H9 860.1-0338-017A0-GM ● ● ○ ○ 3.38 17.50 28.00 66.00 6.00 140.00 65.40 0.60 5.18 h6 H9 860.1-0340-010A0-GM ● ● ● ○ ○ ● 3.40 10.80 20.00 62.00 6.00 140.00 61.40 0.60 3.18 h6 H9 860.1-0340-017A0-GM ● ● ○ ○ 3.40 17.60 28.00 66.00 6.00 140.00 65.40 0.60 5.18 h6 H9 860.1-0350-011A0-GM ● ● ● ○ ○ ● 3.50 11.10 20.00 62.00 6.00 140.00 61.40 0.60 3.17 h6 H9 860.1-0350-018A0-GM ● ● ○ ○ 3.50 18.10 28.00 66.00 6.00 140.00 65.40 0.60 5.17 h6 H9 860.1-0360-011A0-GM ● ● ● ○ ○ ● 3.60 11.40 20.00 62.00 6.00 140.00 61.40 0.60 3.17 h6 H9 860.1-0360-018A0-GM ● ● ○ ○ 3.60 18.60 28.00 66.00 6.00 140.00 65.40 0.60 5.17 h6 H9 860.1-0370-011A0-GM ● ● ● ○ ○ ● 3.70 11.70 20.00 62.00 6.00 140.00 61.40 0.60 3.16 h6 H9 860.1-0370-019A0-GM ● ● ○ ○ 3.70 19.10 28.00 66.00 6.00 140.00 65.40 0.60 5.16 h6 H9 860.1-0380-012A0-GM ● ● ● ○ ○ ● 3.80 12.00 24.00 66.00 6.00 140.00 65.40 0.60 3.16 h6 H9 860.1-0380-019A0-GM ● ● ○ ○ 3.80 19.60 36.00 74.00 6.00 140.00 73.40 0.60 5.16 h6 H9 860.1-0390-012A0-GM ● ● ● ○ ○ ● 3.90 12.40 24.00 66.00 6.00 140.00 65.30 0.70 3.18 h6 H9 860.1-0390-020A0-GM ● ● ○ ○ 3.90 20.20 36.00 74.00 6.00 140.00 73.30 0.70 5.18 h6 H9 860.1-0400-012A0-GM ● ● ● ○ ○ ● 4.00 12.70 24.00 66.00 6.00 140.00 65.30 0.70 3.17 h6 H9 860.1-0400-020A0-GM ● ● ○ ○ 4.00 20.70 36.00 74.00 6.00 140.00 73.30 0.70 5.18 h6 H9 860.1-0410-013A0-GM ● ● ● ○ ○ ● 4.10 13.00 24.00 66.00 6.00 140.00 65.30 0.70 3.17 h6 H9 860.1-0410-021A0-GM ● ● ○ ○ 4.10 21.20 36.00 74.00 6.00 140.00 73.30 0.70 5.17 h6 H9 860.1-0420-013A0-GM ● ● ● ○ ○ ● 4.20 13.30 24.00 66.00 6.00 140.00 65.30 0.70 3.17 h6 H9 860.1-0420-021A0-GM ● ● ○ ○ 4.20 21.70 36.00 74.00 6.00 140.00 73.30 0.70 5.17 h6 H9 860.1-0430-013A0-GM ● ● ● ○ ○ ● 4.30 13.60 24.00 66.00 6.00 140.00 65.30 0.70 3.16 h6 H9 860.1-0430-022A0-GM ● ● ○ ○ 4.30 22.20 36.00 74.00 6.00 140.00 73.30 0.70 5.16 h6 H9 860.1-0440-014A0-GM ● ● ● ○ ○ ● 4.40 14.00 24.00 66.00 6.00 140.00 65.30 0.70 3.18 h6 H9 ● = First choice ○ = Good choice 374
