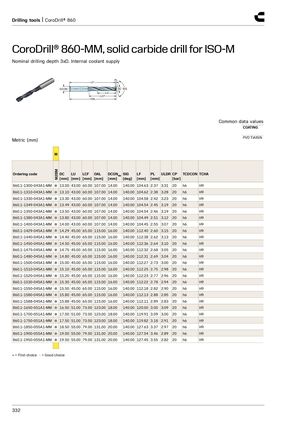

Drilling tools | CoroDrill® 860 CoroDrill® 860-MM, solid carbide drill for ISO-M​​ Nominal drilling depth 3xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) M M2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 860.1-1300-043A1-MM ● 13.00 43.00 60.00 107.00 14.00 140.00 104.63 2.37 3.31 20 h6 H9 860.1-1310-043A1-MM ● 13.10 43.00 60.00 107.00 14.00 140.00 104.62 2.38 3.28 20 h6 H9 860.1-1330-043A1-MM ● 13.30 43.00 60.00 107.00 14.00 140.00 104.58 2.42 3.23 20 h6 H9 860.1-1349-043A1-MM ● 13.49 43.00 60.00 107.00 14.00 140.00 104.54 2.45 3.19 20 h6 H9 860.1-1350-043A1-MM ● 13.50 43.00 60.00 107.00 14.00 140.00 104.54 2.46 3.19 20 h6 H9 860.1-1380-043A1-MM ● 13.80 43.00 60.00 107.00 14.00 140.00 104.49 2.51 3.12 20 h6 H9 860.1-1400-043A1-MM ● 14.00 43.00 60.00 107.00 14.00 140.00 104.45 2.55 3.07 20 h6 H9 860.1-1429-045A1-MM ● 14.29 45.00 65.00 115.00 16.00 140.00 112.40 2.60 3.15 20 h6 H9 860.1-1440-045A1-MM ● 14.40 45.00 65.00 115.00 16.00 140.00 112.38 2.62 3.13 20 h6 H9 860.1-1450-045A1-MM ● 14.50 45.00 65.00 115.00 16.00 140.00 112.36 2.64 3.10 20 h6 H9 860.1-1475-045A1-MM ● 14.75 45.00 65.00 115.00 16.00 140.00 112.32 2.68 3.05 20 h6 H9 860.1-1480-045A1-MM ● 14.80 45.00 65.00 115.00 16.00 140.00 112.31 2.69 3.04 20 h6 H9 860.1-1500-045A1-MM ● 15.00 45.00 65.00 115.00 16.00 140.00 112.27 2.73 3.00 20 h6 H9 860.1-1510-045A1-MM ● 15.10 45.00 65.00 115.00 16.00 140.00 112.25 2.75 2.98 20 h6 H9 860.1-1520-045A1-MM ● 15.20 45.00 65.00 115.00 16.00 140.00 112.23 2.77 2.96 20 h6 H9 860.1-1530-045A1-MM ● 15.30 45.00 65.00 115.00 16.00 140.00 112.22 2.78 2.94 20 h6 H9 860.1-1550-045A1-MM ● 15.50 45.00 65.00 115.00 16.00 140.00 112.18 2.82 2.90 20 h6 H9 860.1-1580-045A1-MM ● 15.80 45.00 65.00 115.00 16.00 140.00 112.13 2.88 2.85 20 h6 H9 860.1-1588-045A1-MM ● 15.88 45.00 65.00 115.00 16.00 140.00 112.11 2.89 2.83 20 h6 H9 860.1-1650-051A1-MM ● 16.50 51.00 73.00 123.00 18.00 140.00 120.00 3.00 3.09 20 h6 H9 860.1-1700-051A1-MM ● 17.00 51.00 73.00 123.00 18.00 140.00 119.91 3.09 3.00 20 h6 H9 860.1-1750-051A1-MM ● 17.50 51.00 73.00 123.00 18.00 140.00 119.82 3.18 2.91 20 h6 H9 860.1-1850-055A1-MM ● 18.50 55.00 79.00 131.00 20.00 140.00 127.63 3.37 2.97 20 h6 H9 860.1-1900-055A1-MM ● 19.00 55.00 79.00 131.00 20.00 140.00 127.54 3.46 2.89 20 h6 H9 860.1-1950-055A1-MM ● 19.50 55.00 79.00 131.00 20.00 140.00 127.45 3.55 2.82 20 h6 H9 ● = First choice ○ = Good choice 332
