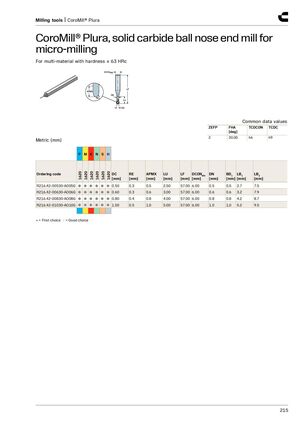

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for micro-milling​​ For multi-material with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h9 Metric (mm) P M K N S H 1620 1620 1620 1620 1620 1620 Ordering code DC RE APMX LU LF DCONMS DN BD 1 LB 1 _ _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.42-00530-AO05G ● ● ● ● ● ● 0.50 0.3 0.5 2.50 57.00 6.00 0.5 0.5 2.7 7.5 R216.42-00630-AO06G ● ● ● ● ● ● 0.60 0.3 0.6 3.00 57.00 6.00 0.6 0.6 3.2 7.9 R216.42-00830-AO08G ● ● ● ● ● ● 0.80 0.4 0.8 4.00 57.00 6.00 0.8 0.8 4.2 8.7 R216.42-01030-AO10G ● ● ● ● ● ● 1.00 0.5 1.0 5.00 57.00 6.00 1.0 1.0 5.2 9.5 ● = First choice ○ = Good choice 215
