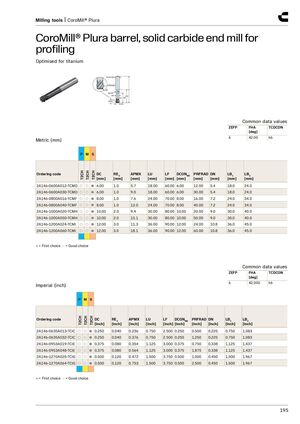

Milling tools | CoroMill® Plura CoroMill® Plura barrel, solid carbide end mill for profiling​​ Optimised for titanium DCON MS PRFRAD1 RE LF BHTA2 DN LB2 LU / LB1 APMX DC Common data values ZEFP FHA TCDCON [deg] 6 42.00 h6 Metric (mm) P M S T2CH T2CH T2CH Ordering code DC RE 2 _ APMX LU LF DCONMS PRFRAD DN LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2A146-0600A012-TCMD ○ ○ ● 6.00 1.0 5.7 18.00 60.00 6.00 12.00 5.4 18.0 24.0 2A146-0600A030-TCMD ○ ○ ● 6.00 1.0 9.0 18.00 60.00 6.00 30.00 5.4 18.0 24.0 2A146-0800A016-TCMF ○ ○ ● 8.00 1.0 7.6 24.00 70.00 8.00 16.00 7.2 24.0 34.0 2A146-0800A040-TCMF ○ ○ ● 8.00 1.0 12.0 24.00 70.00 8.00 40.00 7.2 24.0 34.0 2A146-1000A020-TCMH ○ ○ ● 10.00 2.0 9.4 30.00 80.00 10.00 20.00 9.0 30.0 40.0 2A146-1000A050-TCMH ○ ○ ● 10.00 2.0 15.1 30.00 80.00 10.00 50.00 9.0 30.0 40.0 2A146-1200A024-TCMI ○ ○ ● 12.00 3.0 11.3 36.00 90.00 12.00 24.00 10.8 36.0 45.0 2A146-1200A060-TCMI ○ ○ ● 12.00 3.0 18.1 36.00 90.00 12.00 60.00 10.8 36.0 45.0 ● = First choice ○ = Good choice Common data values ZEFP FHA TCDCON [deg] 6 42.000 h6 Imperial (inch) P M S T2CH T2CH T2CH Ordering code DC RE 2 _ APMX LU LF DCONMS PRFRAD DN LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2A146-0635A013-TCIC ○ ○ ● 0.250 0.040 0.236 0.750 2.500 0.250 0.500 0.225 0.750 1.083 2A146-0635A032-TCIC ○ ○ ● 0.250 0.040 0.376 0.750 2.500 0.250 1.250 0.225 0.750 1.083 2A146-0953A019-TCIE ○ ○ ● 0.375 0.080 0.354 1.125 3.000 0.375 0.750 0.338 1.125 1.437 2A146-0953A048-TCIE ○ ○ ● 0.375 0.080 0.564 1.125 3.000 0.375 1.875 0.338 1.125 1.437 2A146-1270A025-TCIG ○ ○ ● 0.500 0.120 0.472 1.500 3.750 0.500 1.000 0.450 1.500 1.967 2A146-1270A064-TCIG ○ ○ ● 0.500 0.120 0.753 1.500 3.750 0.500 2.500 0.450 1.500 1.967 ● = First choice ○ = Good choice 195
