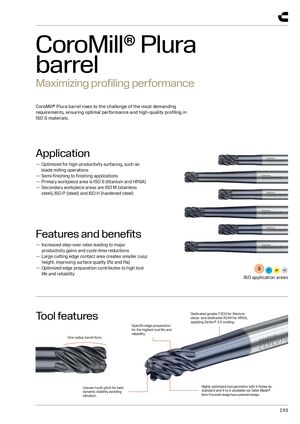

CoroMill® Plura barrel Maximizing profiling performance CoroMill® Plura barrel rises to the challenge of the most demanding requirements, ensuring optimal performance and high-quality profiling in ISO S materials. Application — Optimized for high-productivity surfacing, such as blade milling operations — Semi-finishing to finishing applications — Primary workpiece area is ISO S (titanium and HRSA) — Secondary workpiece areas are ISO M (stainless steel), ISO P (steel) and ISO H (hardened steel) Features and benefits — Increased step-over rates leading to major productivity gains and cycle-time reductions — Large cutting edge contact area creates smaller cusp height, improving surface quality (Rz and Ra) — Optimized edge preparation contributes to high tool life and reliability ISO application areas Tool features Dedicated grades T2CH for titanium alloys ​and dedicated R2AH for HRSA, applying Zertivo® 2.0 coating​. Specific edge preparation for the highest tool life and reliability. One radius barrel form. Uneven tooth pitch for best Highly optimized tool geometry with 6 flutes as dynamic stability​avoiding standard and 4 to 6 available via Tailor Made®. vibration. Note: Five teeth design has a patented design. 193
