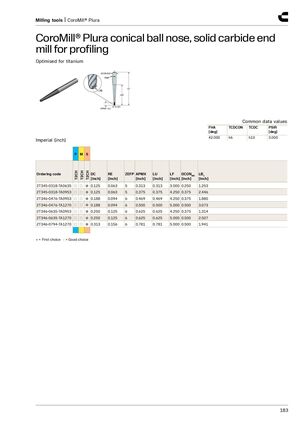

Milling tools | CoroMill® Plura CoroMill® Plura conical ball nose, solid carbide end mill for profiling​​ Optimised for titanium DCON MS PSIR LF RE LB1 DC APMX / LU Common data values FHA TCDCON TCDC PSIR [deg] [deg] 42.000 h6 h10 3.000 Imperial (inch) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS LB 1 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2T345-0318-TA0635 ○ ○ ● 0.125 0.063 5 0.313 0.313 3.000 0.250 1.253 2T345-0318-TA0953 ○ ○ ● 0.125 0.063 5 0.375 0.375 4.250 0.375 2.446 2T346-0476-TA0953 ○ ○ ● 0.188 0.094 6 0.469 0.469 4.250 0.375 1.880 2T346-0476-TA1270 ○ ○ ● 0.188 0.094 6 0.500 0.500 5.000 0.500 3.073 2T346-0635-TA0953 ○ ○ ● 0.250 0.125 6 0.625 0.625 4.250 0.375 1.314 2T346-0635-TA1270 ○ ○ ● 0.250 0.125 6 0.625 0.625 5.000 0.500 2.507 2T346-0794-TA1270 ○ ○ ● 0.313 0.156 6 0.781 0.781 5.000 0.500 1.941 ● = First choice ○ = Good choice 183
