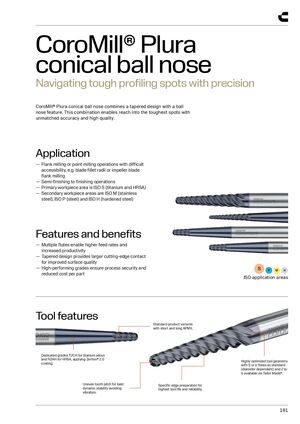

CoroMill® Plura conical ball nose Navigating tough profiling spots with precision CoroMill® Plura conical ball nose combines a tapered design with a ball nose feature. This combination enables reach into the toughest spots with unmatched accuracy and high quality. Application — Flank milling or point milling operations with difficult accessibility, e.g. blade fillet radii or impeller blade flank milling — Semi-finishing to finishing operations — Primary workpiece area is ISO S (titanium and HRSA) — Secondary workpiece areas are ISO M (stainless steel), ISO P (steel) and ISO H (hardened steel) Features and benefits — Multiple flutes enable higher feed rates and increased productivity — Tapered design provides larger cutting-edge contact for improved surface quality — High-performing grades ensure process security and reduced cost per part ISO application areas Tool features Standard product variants with short and long APMX. Dedicated grades T2CH for titanium alloys and R2AH for HRSA, applying Zertivo® 2.0 Highly optimized tool geometry coating​. with 5 or 6 flutes as standard (diameter dependent) and 2 to 6 available via Tailor Made®. Uneven tooth pitch for best Specific edge preparation for dynamic stability​avoiding highest tool life and reliability. vibration. 181
