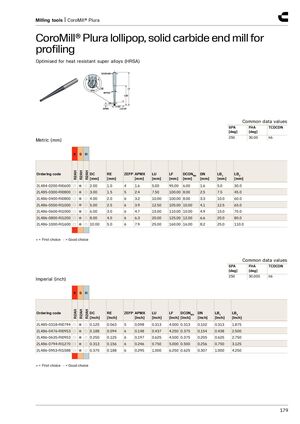

Milling tools | CoroMill® Plura CoroMill® Plura lollipop, solid carbide end mill for profiling​​ Optimised for heat resistant super alloys (HRSA) Common data values SPA FHA TCDCON [deg] [deg] 250 30.00 h6 Metric (mm) K S H R2AH R2AH R2AH Ordering code DC RE ZEFP APMX LU LF DCONMS DN LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2L484-0200-RI0600 ○ ● ○ 2.00 1.0 4 1.6 5.00 95.00 6.00 1.6 5.0 30.0 2L485-0300-RI0800 ○ ● ○ 3.00 1.5 5 2.4 7.50 100.00 8.00 2.5 7.5 45.0 2L486-0400-RI0800 ○ ● ○ 4.00 2.0 6 3.2 10.00 100.00 8.00 3.3 10.0 60.0 2L486-0500-RI1000 ○ ● ○ 5.00 2.5 6 3.9 12.50 105.00 10.00 4.1 12.5 65.0 2L486-0600-RI1000 ○ ● ○ 6.00 3.0 6 4.7 15.00 110.00 10.00 4.9 15.0 70.0 2L486-0800-RI1200 ○ ● ○ 8.00 4.0 6 6.3 20.00 125.00 12.00 6.6 20.0 80.0 2L486-1000-RI1600 ○ ● ○ 10.00 5.0 6 7.9 25.00 160.00 16.00 8.2 25.0 110.0 ● = First choice ○ = Good choice Common data values SPA FHA TCDCON [deg] [deg] 250 30.000 h6 Imperial (inch) K S H R2AH R2AH R2AH Ordering code DC RE ZEFP APMX LU LF DCONMS DN LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2L485-0318-RI0794 ○ ● ○ 0.125 0.063 5 0.098 0.313 4.000 0.313 0.102 0.313 1.875 2L486-0476-RI0953 ○ ● ○ 0.188 0.094 6 0.148 0.437 4.250 0.375 0.154 0.438 2.500 2L486-0635-RI0953 ○ ● ○ 0.250 0.125 6 0.197 0.625 4.500 0.375 0.205 0.625 2.750 2L486-0794-RI1270 ○ ● ○ 0.313 0.156 6 0.246 0.750 5.000 0.500 0.256 0.750 3.125 2L486-0953-RI1588 ○ ● ○ 0.375 0.188 6 0.295 1.000 6.250 0.625 0.307 1.000 4.250 ● = First choice ○ = Good choice 179
