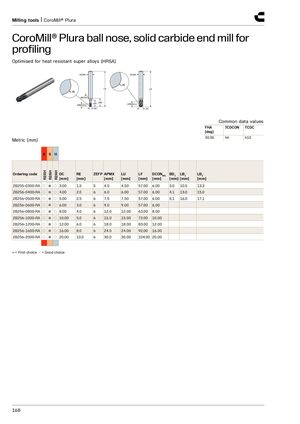

Milling tools | CoroMill® Plura CoroMill® Plura ball nose, solid carbide end mill for profiling​​ Optimised for heat resistant super alloys (HRSA) DCON DCON RE LF LF RE BHTA2 LB1 LB2 APMX/LU APMX/LU DC DC Common data values FHA TCDCON TCDC [deg] 30.00 h6 h10 Metric (mm) K S H R2AH R2AH R2AH Ordering code DC RE ZEFP APMX LU LF DCONMS BD 1 LB 1 _ _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2B255-0300-RA ○ ● ○ 3.00 1.5 5 4.5 4.50 57.00 6.00 3.0 10.5 13.3 2B256-0400-RA ○ ● ○ 4.00 2.0 6 6.0 6.00 57.00 6.00 4.1 13.0 15.0 2B256-0500-RA ○ ● ○ 5.00 2.5 6 7.5 7.50 57.00 6.00 5.1 16.0 17.1 2B256-0600-RA ○ ● ○ 6.00 3.0 6 9.0 9.00 57.00 6.00 2B256-0800-RA ○ ● ○ 8.00 4.0 6 12.0 12.00 63.00 8.00 2B256-1000-RA ○ ● ○ 10.00 5.0 6 15.0 15.00 72.00 10.00 2B256-1200-RA ○ ● ○ 12.00 6.0 6 18.0 18.00 83.00 12.00 2B256-1600-RA ○ ● ○ 16.00 8.0 6 24.0 24.00 92.00 16.00 2B256-2000-RA ○ ● ○ 20.00 10.0 6 30.0 30.00 104.00 20.00 ● = First choice ○ = Good choice 168
